StellarSCOPE™ Systems for Microscopy
for Raman, Fluorescence, & CIELAB Color Analysis, now with options for Auto-Mapping Microscopy Request a QuoteDownload Instrument PDF
StellarSCOPE™ Systems for Microscopy
- Couple Spectrometers & Light Sources to high-performance Microscopes
- Perform Raman, Fluorescence, Film Metrology, & CIELAB color measurements on a micro spot and capture high-resolution images, video, and time-lapse video
- Systems equipped with an Olympus research microscope with 4, 10, & 40x objectives, CMOS 1.3 Mpixel Camera, optical switch, and required SMA couplers & attachment accessories for your specific application
- New upgrade for Auto-Mapping Microscopy integrated with StellarPro software
StellarNet has released the StellarSCOPE™ and StellarSCOPE-AM Systems allowing users to couple their favorite StellarNet spectrometer systems to a microscope. This enables users to perform Raman, Fluorescence, Film Metrology, & CIELAB color measurements on a micro spot and capture high-resolution images, video, and time-lapse video of their samples. The new StellarSCOPE-AM allows for Auto-Mapping using our new StellarPro spectrometer application software.
Raman Configurations
• 532, 785, 830, & 1064nm Options
• Dual Wavelength Systems Available
• Compatible with Ramulaser or Lab-Lasers
• Raman-HR-TEC and High Performance StellarElite Quasars and HYPER-Nova
• Coupling optics, filters, & accessories available
• Affordable SERS substrates
Color Analysis Configurations
• Measure sample spot L*a*b* values
• Compare colors quickly & accurately
• Color variation displayed as numerical dE value
• Couple with BLACK-Comet or HYPER-Nova & Colorimetry Accessories
Fluorescence Configurations
• SL1-LED excitation source with UV-LED kit
• SILVER-Nova and HYPER-Nova or highest performance
• Coupling optics, filters, & accessories available
Auto-Mapping of Raman and Other Spectroscopies

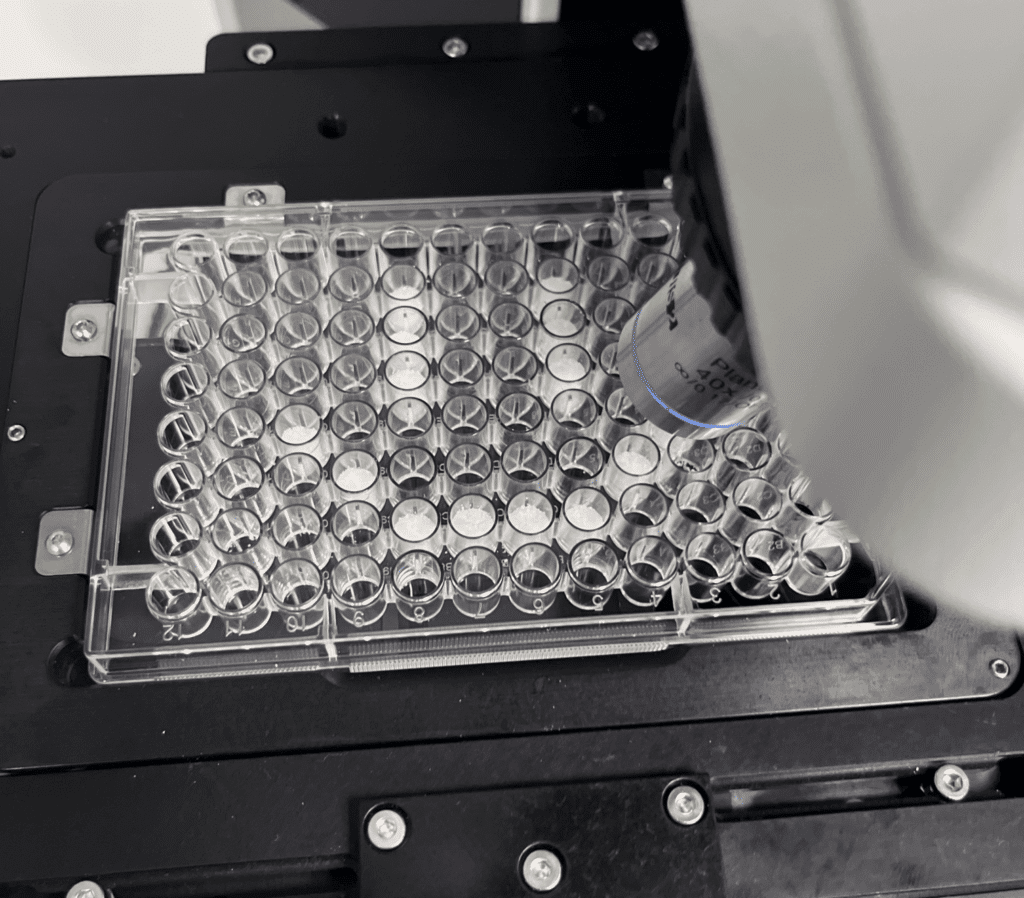

The new StellarSCOPE-AM includes a 2D automatic stage for XY translational sample mapping with submicron resolution or for use with up to 96 microwell plates for the automatic collection of large amounts of samples .
StellarPro Software Integration
Use our StellarPro spectrometer application software to control measurements and record data. Full spectral data and selectable wavelength control allow for 2D spectroscopic images and data collection in many formats. This example is using 785nm Raman spectroscopy.
Automatically Controlled XY Position
The new StellarSCOPE-AM offers 100mm x100mm maximum translational range and step resolution of 0.15 microns. The electronic stage provides high speed and repeatability making it a perfect for multi sample analysis or capturing spectral images in high resolution.
StellarSCOPE™ Microscopy Sample Spectra
Pharmaceuticals– Tablet fraction @ 4x zoom & Raman using StellarSCOPE System configured for 785nm Raman. SpectraWizID displays library match
Art Authentication- StellarSCOPE @ 10x zoom coupled to a 785nm Raman Spectrometer allows art experts to compare spectral database of art and archaeological materials to determine the samples chemical composition & its authenticity.
StellarSCOPE™ Microscopy System Options and Pricing
StellarSCOPE™ Microscopy System Options
StellarSCOPE StellarNet configured Microscope equipped with 4,10, & 40x objectives, CMOS 1.3 Mpixel Camera, optical switch, and required coupling accessories $11,000.00
StellarSCOPE-AM StellarNet configured Auto-Mapping Microscope equipped with 4,10, & 40x objectives, CMOS 1.3 Mpixel Camera, optical switch, and required coupling accessories $29,500.00
StellarSCOPE™System Specifications
Optical system UIS2 (Universal Infinity-corrected) optical system
Illumination Built-in transmitted Koehler illuminator
6V30W halogen bulb
100-120V/220-240Vg 0.85/0.45A 50/60Hz
Focusing •Stage height movement by roller guide (rack & pinion) •Stroke per rotation: 36.8mm
•Full stroke range: 25mm •Upper limit stopped by simplified pre-focusing dial
•Tension adjustment on coarse focus adjustment knob
Measurement
StageSize: 188(W) X 134(D)mm
Movement range: 76mm X-direction X 50mm Y-direction
Specimen holder, Double slide holder, Rubber grip Equipped as standard
Objectives 4, 10, 40x with working distance 18.5mm, 10.6mm, & 0.6mm
Camera 1.3 Megapixel resolution, image capture, video and time-lapse video modes
Multi-Mode Feature Easy adjustment switch between Camera Mode and Spectrometer Mode
*Please contact a StellarNet sales representative about more spectrometer configurations
StellarPro & SpectraWiz Software
Our new StellarPro Software is a combination of our popular SpectraWiz software with advanced tools and an application module style interface, be prepared to have your mind blown. Built-in modules for Radiometry, Colorimetry, Chemical Absorption/Kinetics, Chemometrics, Spectral ID, Raman, Multichannel, Haze, & Thin-Film.
Our new StellarPro software also has integrated spectral preprocessing such as baseline subtraction, spike removal, and derivative view. Spectral matching, PLS Calibration model development, Classification algorithm, and run-time deployment are all included in this new software suite. StellarPro has user permission settings, login, and reporting to export all of your data in one place. Additional apps for Haze, Thin Film Analysis, and more are also included!
Now includes module for automatic microscope control for Auto-Mapping Microscopy.
Free SpectraWiz® Software
The powerful SpectraWiz spectrometer software is provided free of charge with every spectrometer instrument. This includes drivers and customizable software for Windows. The SpectraWiz software is considered the “Swiss Army Knife of Spectroscopy” and may be used to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities. In addition to real-time spectroscopy, SpectraWiz® has built-in applications for SpectroRadiometry, SpectroColorimetry, ChemWiz chemistry lab concentration analyzer, and UV level monitors. Download SpectraWiz Software FREE

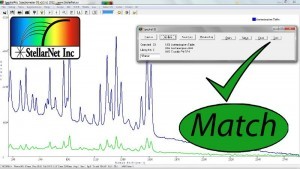

SpectraWiz ID- Library Save/Search
The Spectrawiz-ID application has been updated to allow users to save sample spectra to a specified library, then later perform a real time search using unknown samples to look for matches. This new feature works for Raman, NIR, or UV-VIS spectra using covariance mathematics to assign a correlation value and displays the top 10 library entries that qualify as a match.

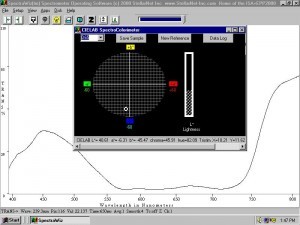

CIELAB Color Application
CIELAB color measurement application
- L*: Brightness (0 to 100)
- a*: Green (-a) to Red (+a)
- b*: Blue (-b) to Yellow (+b)
- Delta E* color difference
- X Y Z tristimulus
- xy chromaticity
- Chroma
- Hue
- Select any illuminant (A-C,D50-D75,F1-F12)
- Compare samples to saved color standards
- Sample color values can be saved to text file
For more information about the FREE SpectraWiz® Software Suite & all our other customizable full source codes and programs click on the links below!
