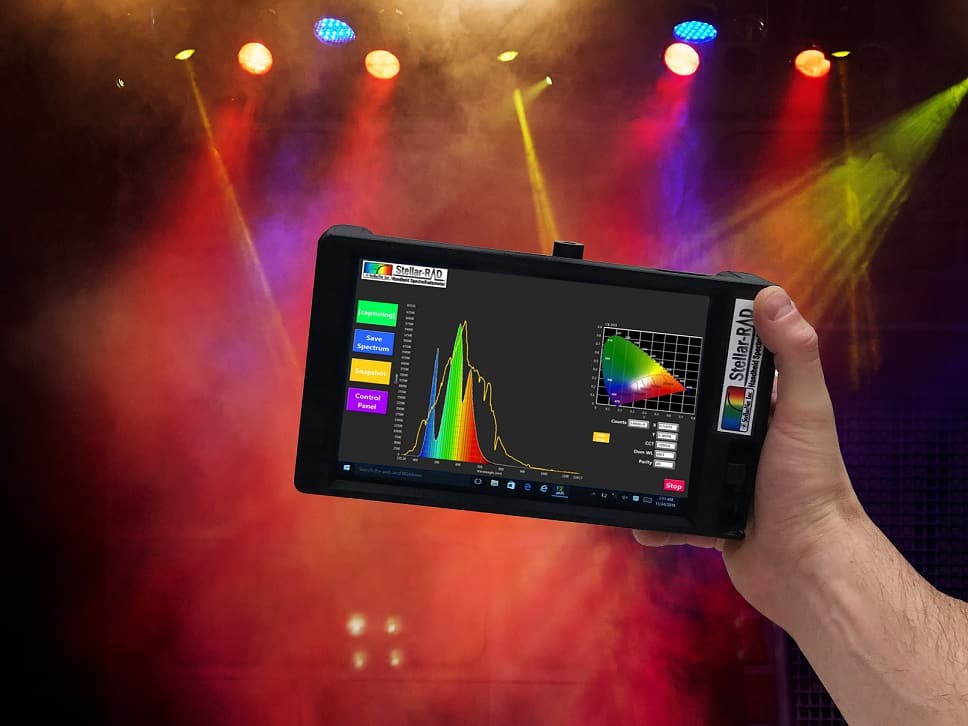

The StellarRAD™ Series 4 is a rugged, turn-key solution for portable light measurement. This handheld radiometer is an easy-to-use research-grade spectrometer for field testing of lights with no additional setup required. The NIST traceable system can measure spectral Irradiance & Illuminance, CCT, xy chromaticity, CRI, PAR, and much more!
Compared to other handheld colorimeters, the StellarRAD utilizes a research-grade spectrometer with <1nm spectral resolution, making these instruments the first choice in reliable testing, field demonstrations, installations, R&D, and quality control.
- Reliably measure light output in Lumens/m^2 (Lux), Watts/m2, PAR, PPFD, and Footcandles
- 1931 CIE Chromaticity Diagram for xy Chromaticity, Dominant Wavelength, Purity, Correlated Color Temperature (CCT), & Color Rendering Index (CRI)
- Includes NIST Certificate of Traceability and delivered with all calibrations preloaded ready to use
- UV upgrades (250-1100nm) available; includes UVa, UVb, UVc, ratios, & power for $500
- Includes Solar Monitoring App with solar and grow light classification
- Add lens, aperture, and collimating tube attachments for increased functionality
- ColorWiz Handheld Colorimeter and ChemWiz Handheld Spectrophotometer now available!
NIST Traceable Calibration
NIST Calibrations
The factory performs calibrations for the StellarRAD using NIST traceable calibration lamps for absolute intensity in Watts/m^2/nm. Absolute calibration: accuracy within 10% at detector integration setting used for calibration.
IRRAD-CAL Certificate is included which contains all pertinent NIST traceable calibration information.
Optional RAD-CAL-SR or Radiance calibration (W/m^2/sr) can be purchased with your StellarRAD. This type of calibration is often purchased when measuring display screens and backlights. Must also purchase the CRLENS accessory.
Other calibrations can also be purchased with each StellarRAD system. Contact your local technical sales representative for the best configuration for you.
StellarRAD Technical Specifications
Sensor: BLUE-Wave spectrometer with 2k pixel detector
Spectrometer range: 350-1150nm (Optional UV @ 250nm)
Spectral Resolution: <1nm
Measurement Range: 0.05-400k Lux/ 0.25-1600W/m^2
Receptor Type: Cosine corrected for Irradiance
Integration time: 10ms to 60s
Digitizer Resolution: 16bit
Optics: Research Grade Crossed Czerny Turner
Wavelength Accuracy: <0.25nm
lluminance Accuracy: +/- 5%, NIST Calibrated
Color Accuracy: +/-0.001 (reference standard lamp)
CCT Accuracy: +/- 2%
Tablet Specs: Android
Software included: StellarRAD App
StellarRAD Pricing and Options
StellarRAD Handheld Radiometer
StellarRAD
Handheld SpectroRadiometer for NIST traceable light measurement from 350-1100nm with <1nm spectral resolution. UV and near-infrared ranges are optional. Handheld-Radiometer measures irradiance, illuminance, xy chromaticity, dominant wavelength, CCT, CRI, the complete spectral distribution of all light 350-1100nm, and much more! The handheld system incorporates research-grade BLUE-Wave spectrometer optics. It has an 8", high performance Android touchscreen interface that’s both ergonomic and user-friendly. System comes with pre-installed StellarRAD software and calibration, direct attach SMA-coupler, CR2 Cosine Receptor, IRRAD-CAL irradiance calibration, and certificate. System charging adapter and USB key included. $4,200.00
StellarRAD Upgrades & Additional Accessories
UV upgrade UV StellarRad upgrade 250-1100nm $500.00
CRLENS
Lens assembly for Radiance measurements in Watts/sr/m^2/nm. Cosine receptor reduces the field of view from 180 degrees to a small spot. Adjustable focus allows variable distance from target surface. $295.00
CR2-AP
Screw on 10% aperture for CR2, allows measurement of light that is 10 times brighter $200.00
Col-Tubes
Cosine receptor holder with field of view reducing extension tubes. Can be used as a tripod or handheld pointer (gun) for the cosine receptor accessory. Comes with a set of 3 field of view reducing “collimating tubes” with 10, 20, and 30 deg FOV. Custom lengths also available. Buy Online $250.00
Additional NIST Traceable Calibration Options
RAD-CAL-SR Radiance calibration in Watts/sr/m^2/nm can measure Cd/m^2/nm – requires CR-LENS for CR2 $350.00
Backup Accessories & Portability
StellarRAD Tablet Replacement or Backup Tablet with pre-installed software and calibrations loaded $225.00
Stellar-PACK The StellarPack accessory includes a backpack with spectrometer mounting plate and mounting hardware. A battery pack is also included and attaches to the mounting plate and provides portable powering options $485.00
Instrument Case Durable water-tight equipment case with customizable foam interior $195.00
StellarRAD User Manual
StellarRAD Software Download
What’s New
– Supports adjustment of decimal places in the app setup.
– Supports watt unit conversion by clicking on the watts label in the Data tab.
Updated August 19 2024
StellarRAD FAQ
Can I plug a USB cable into the StellarRAD’s external USB drive port and connect to a computer?
No, the external USB drive allows you to access all data that you have saved onto the StellarRAD’s tablet. This includes spectral data, screenshots, PDF reports, and more.
Can I use a regular computer running SpectraWiz or any other program with my StellarRAD device?
Series 4 : No. The Series 4 StellarRAD is a stand-alone instrument. It is compatible with our other accessories, but it cannot be used with a PC.
Series 3 :Yes, you can use VirtualHere, a USB-over-IP utility, to access the StellarRAD. You can download VirtualHere Download VirtualHere Win64 or other versions at https://virtualhere.com. Use your regular computer’s WiFi to login to the StellarRAD’s access point and launch virtual here. Don’t forget you must install SpectraWiz and related drivers on your computer in order for the computer to recognize the device. You will be able to run SpectraWiz and any customizable Windows program as if you had the device connected directly to your USB port!
Sometimes it takes a minute or so to establish WiFi connection. Is this normal?
Series 4: The Series 4 StellarRAD does not rely on WiFi for communication between the spectrometer and tablet.
Series 3: The StellarRAD consists of an Android tablet and a spectrometer server (right-side power button). The spectrometer server must power up for about 1 minute before spectral data can stream to the android tablet. The spectrometer server requires minimum power to operate and can be left on during and in between measurements so the system WiFi connection doesn’t have to be continually established.
Why are there two power indicators?
There is a main system battery as well as the tablet’s internal battery. The battery icon in the StellarRAD app is for the system and the tablet power information can be found in the upper right corner.
How can I get the newest version of the StellarRAD Pro Software?
We are continually updating our Pro software options for our handheld systems. Visit the Google Play store for the most recent versions and download and install directly on your StellarRAD device. Go to StellarRAD Pro Version 3.4
Are there any trade-in options if I already have an older model and want to upgrade?
Yes, please find our trade-in program here
What is the battery life expectations of the system?
Typically you can expect 4-6 hours with the Series 3 and 4 Handheld Systems. They have additional internal battery packs compared to older versions. Depending if you run continuously or have lamps powered on, your battery life could be reduced. Like many other consumer electronics with integrated batteries, leaving them without charge or charging for extended periods would be considered misuse and can reduce lifetimes and lead to failure. Using your system regularly is the best way to assure the longevity of the system.
StellarRAD Software Interface
Take a tour of our StellarRAD Pro software delivered on our new Series 4 StellarRAD Handheld SpectroRadiometer. This quick demo shows how to connect to the device, modify Device Settings (integration time, scans to average, smoothing), take a dark reference, capture sample data, and save and review spectral data! This quick demo is just the beginning of the spectrum as the StellarRAD also features Episodic Data Capture, PDF reporting, and much more!
Light Hurricane Demo
The intuitive StellarRAD software interface allows system control and collection of advanced light measurement parameters such as spectral irradiance (Watt/m²), illuminance (lumen/m²), & PAR (Photosynthetically Active Radiation). Colorimetric analysis such as CRI (Color Rendering Index), CCT (Correlated Color Temperature), xy chromaticity, and much more are included. Capture snapshots or continuous mode spectra. Easily save and export your data and full spectral graph as an .IRR text data file, screenshot, and/or PDF report with all parameters listed.
StellarRAD Applications – LEDs, Luminaires, Solar, Displays, Grow Lights, & Lasers!
Any Light Emission
What better way to demonstrate a handheld radiometer than to measure a candle flame! Any type of light emission can be measured by pointing the StellarRAD’s cosine receptor toward the light source, setting the best exposure time and system settings, and pressing capture.
White LED Color
White light, cool white, warm white, incandescent white, LEDs… Just how many different white lights can there be? The StellarRAD automatically calculates Correlated Color Temperature (CCT) and Color Rendering Index (CRI). Easily distinguish and compare white LEDs.
LED Quality Control
With so many LEDs being manufactured overseas, you need a reliable instrument to test your incoming products. As a manufacturer or product integrator, checking the power and wavelength for accuracy of specification and/or consistency is important. The StellarRAD is the instrument for you.
ColorWiz Handheld Colorimeter Upgrade
Now available! ColorWiz Handheld Colorimeter allows users to add an integrated halogen light source, reflectance accessories, and the powerful ColorWiz Pro App software to their StellaRAD making real-time color measurements quick and easy. Acquire full spectrum analysis and research-grade colorimetry of solids and powder samples! Measure advanced color parameters such as CIE L*a*b*, RGB, Chroma, Hue, Luminosity, SRM, Lovibond, and EBC. Save a dE color reference & calculate color differences.
