PORTA-LIBS-2000 and Plasma Monitor Configurations
Laser Induced Breakdown Spectroscopy Request a QuoteDownload Instrument PDF
LIBS & Plasma Monitoring Systems
- The first truly portable low cost elemental analyzer that can be used for real-time qualitative measurements of trace element
- Compact high resolution spectrometers are integrated with a high intensity pulsed laser, and sample chamber, to permit UV-VIS- NIR spectral analysis of unknown samples
- The SpectraWiz ID software provides element identification via spectral database library of elemental emission lines
- LIBS & Plasma Monitoring Systems Overview
- Spectrometer Models & Ranges
- Setup Diagrams
- StellarCASE-LIBS Video
The portable instrument case is just 18 x 14 x 7 inches and operates via 12 volt adapter or batter
StellarNet LIBS Systems
The first truly portable low cost analyzer that can be used for real-time qualitative measurements of trace elements. It can be used for dedicated applications in the field or just about anywhere. Portable high resolution spectrometers are integrated with a high intensity pulsed laser, and sample chamber, to permit UV-VIS- NIR spectral analysis of unknown samples. Detection requirements determine the number of required spectrometer channels. Up to 8 high resolution spectrometers can be attached via USB-2 computer interface with 0.1 or 0.2nm resolution.
Laser Induced Breakdown Spectroscopy or LIBS has become the common acronym for element detection via laser induced plasma. This permits real-time qualitative identification of trace elements in solids, gases, and liquids via optical detection of elemental emission spectra. Using this technique, little or no sample preparation is required and calibration-free quantitative analysis has been reported without matrix effects.
Applications in Industrial materials analysis, Prospecting & Mining Environmental monitoring, Homeland security measures, Military chemical and biological agents, Forensics analysis, Pharmaceutical R&D, Engine Oil analysis, Gemology, and Counterfeit detection
LIBS Modular System
The PORTA-LIBS-2000 spectrometers are miniature fiber optic instruments for UV, VIS, and NIR measurements in 190-1000nm spectral ranges.
PORTA-LIBS-2000 system- The entire platform, including the laser, sample compartment, and trigger module measures 5 cm x 21 cm x 10 cm. Not shown is the battery pack or the laptop computer.
Each unit contains a high speed integrated digitizer with spectral scan memory to provide instantaneous spectral capture from the highly sensitive 2048 element CCD detectors. Various models provide a choice of grating range and slit resolution to fit detection requirements. Fiber optic cables deliver the spectral signal from the sample chamber and use standard SMA 905 connections.
The spectrometer optics are exceptionally robust in a vibration tolerant modular design that has no moving parts. The detachable optics assembly and control electronics are protected inside a rugged metal enclosure, suitable for portable applications.
Several units may be daisy-chained via USB-2 hub allowing for expandable configurations. The LHR high resolution spectrometers have double
the resolution (0.1nm) over LSR standard models (0.2nm) with the same grating. The LSR models on the other hand have twice the wavelength range of the LHR allowing for a smaller number of channels when application requirements permit. Most elements have plasma emission spectra in the 200-500nm UV-VIS range, leaving just a few in the 500-925nm VIS-NIR range.
Each PORTA-LIBS-2000 spectrometer includes fiber optic cable interface to sample chamber and high speed USB-2 computer interface with hub when needed. Additional cables are provided for battery operation and laser synchronization.
Spectrometer optics include CCD detector upgrade for UV, order sorting filters, and slit. Optical alignment of each channel allows for 5nm of overlap outside of specified range. SpectraWiz software integrates all optical channels into single spectral graph for elemental analysis and display.
StellarCASE-LIBS Integrated Case System
The StellarCASE-LIBS includes interior mounting of spectrometer instrumentation pre-configured for “Open & Measure” application, with no additional setup required. With a simple press of the “FIRE” button instantaneous Atomic Emission Spectra is collected and elemental match results are displayed on your screen.
LIBS Standard Resolution Spectrometer Models (LSR)
| Spectrometer model | Wavelength Range (nm) | Grating (g/mm) | Grating Range (nm) | Slit-14 nm res. |
|---|---|---|---|---|
| LSR-UV2 | 200-400 | 2400 | 200 | 0.20 |
| LSR-VIS4 | 400-600 | 2400 | 200 | 0.20 |
| LSR-VIS4b | 600-800 | 2400 | 200 | 0.20 |
| LSR-NIR3b | 800-1000 | 2400 | 200 | 0.20 |
LIBS High Resolution Spectrometer Models (LHR)
*LIBS units come with Jack-In trigger, DLENS, & High Resolution Calibrations and when multiple units are ordered together have guaranteed start and stop wavelengths for continuous measurement
Spectrometer model Wavelength Range (nm) Grating (g/mm) Grating Range (nm) Slit-14
nm res.
LHR-UV3 200-300 2400 100 0.10
LHR-UV3b 300-400 2400 100 0.10
LHR-VIS3 400-500 1800 100 0.10
LHR-VIS3b 500-600 1800 100 0.10
LHR-VIS3c 600-700 1800 100 0.10
LHR-NIR3 700-800 1800 100 0.10
LHR-NIR2 800-975 1200 175 0.20
LIBS Sample Spectra
PORTA-LIBS spectral ID of 99.998% Silver
PORTA-LIBS spectral ID of 1.9% Beryllium + 98.1% Copper
PORTA-LIBS spectrum of MUD displaying qualitative elemental composition from emmision
| Specifications | |
| Spectrometer channels: Expandable to 8 | Case Dimensions: 7 x 14 x 18 inches |
| Spectrometer ranges:: 190-1000nm wavelengths | Data transfer speed: 480 Mbits per second |
| Optical resolution: HR=0.1nm or SR=0.2nm | Power consumption: 350 mA @ 12 VDC |
| Detector range: 2048 pixel CCD array | Computer Interface: USB-2 port |
| Laser Type: Pulsed Nd-YAG @1.06um | Laser power: 25 milli-joules (4ns pulse) |
| Laser model & rep rate: Kigre MK-367. 1 Hertz | Power to sample: 6 MegaWatts |
| Laser lifetime: > 300,000 shots | Plasma chamber: 2 x 2 x 3 inches |
| SR wavelength range: 200nm=200-400/400-600 | Operating systems: Win98/Me/00/XP |
| HR wavelength range: 100nm=200-300/300-400 | Software included: SpectraWiz Spectral-ID |
| Additional channel: SR=$3000 HR=$3500 | Customizable software: LabView, Excel+VBA, Delphi |
| Example Configurations: | |
| LSR1 $19,995: 1 channel, 200nm range | LHR1 $23,995: 2 channel, 200nm range |
| LSR2 $22,995: 2 channel, 400nm range | LHR2 $27,995: 3 channel, 300nm range |
| LSR3 $25,995: 3 channel, 600nm range | LHR3 $30,995: 4 channel, 400nm range |
| LSR4 $28,995: 4 channel, 800nm range | LHR4 $34,995: 5 channel, 500nm range |
| LSR5 $31,995: 5 channel, 1000nm range | LHR5 $37,995: 6 channel, 6000nm range |

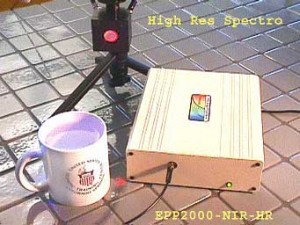

EPP2000-NIR-HR: Stellarnet’s High Resolution Spectrometers for plasma emision monitoring
Portable spectrometers include a USB-2 interface cable and +5VDC power adapter for 120VAC-60H (light sont transformers with U.S. style 2 prong plugs). For usage outside the U.S.A., we offer an upgrade to universal power adapters. If you don’t have a USB-2 port, connecting the spectrometer to a second EPP printer port on your computer is most convenient and recommended. For portable notebook computers that don’t have a USB-2 port or an EPP capable printer port, we offer the PCMCIA card style EPP interface.
