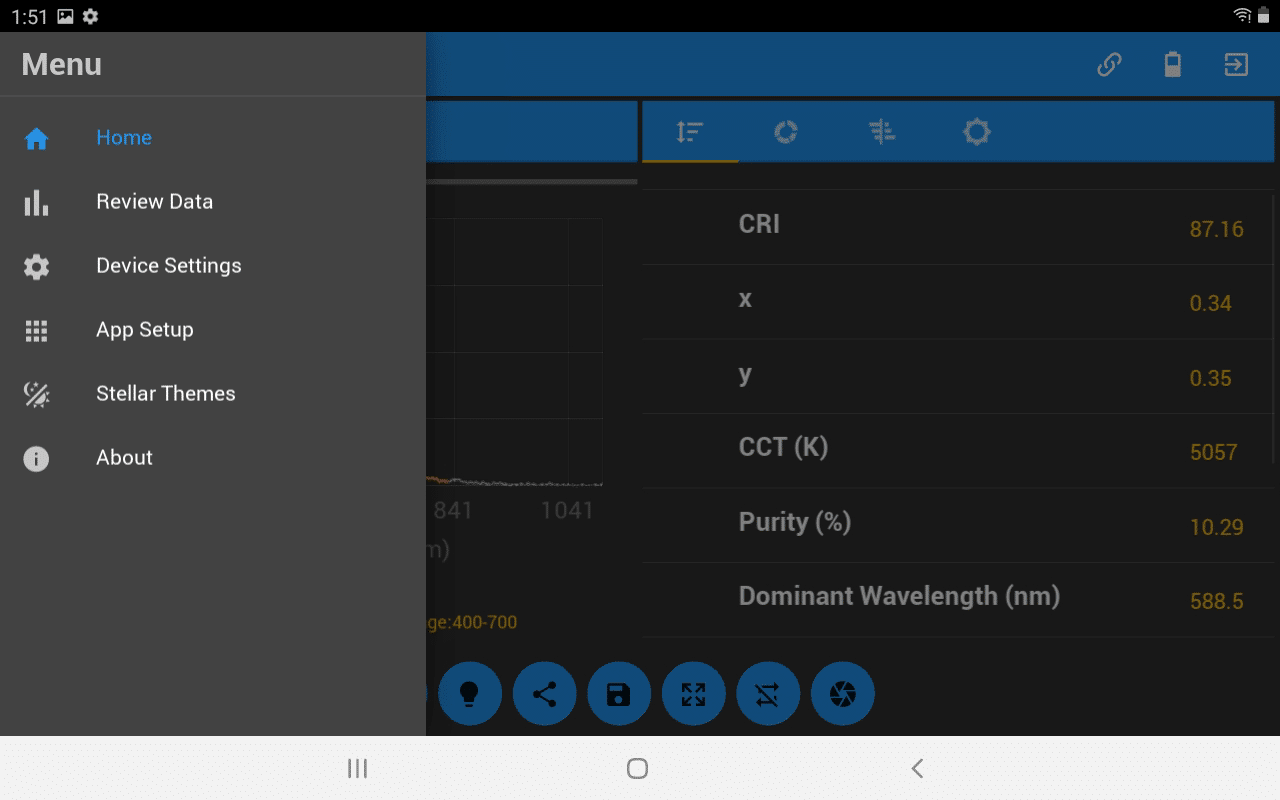

The left side menu is the StellarRAD’s main menu containing Review Data, Device Settings, App Setup, Stellar Themes, and About Section.

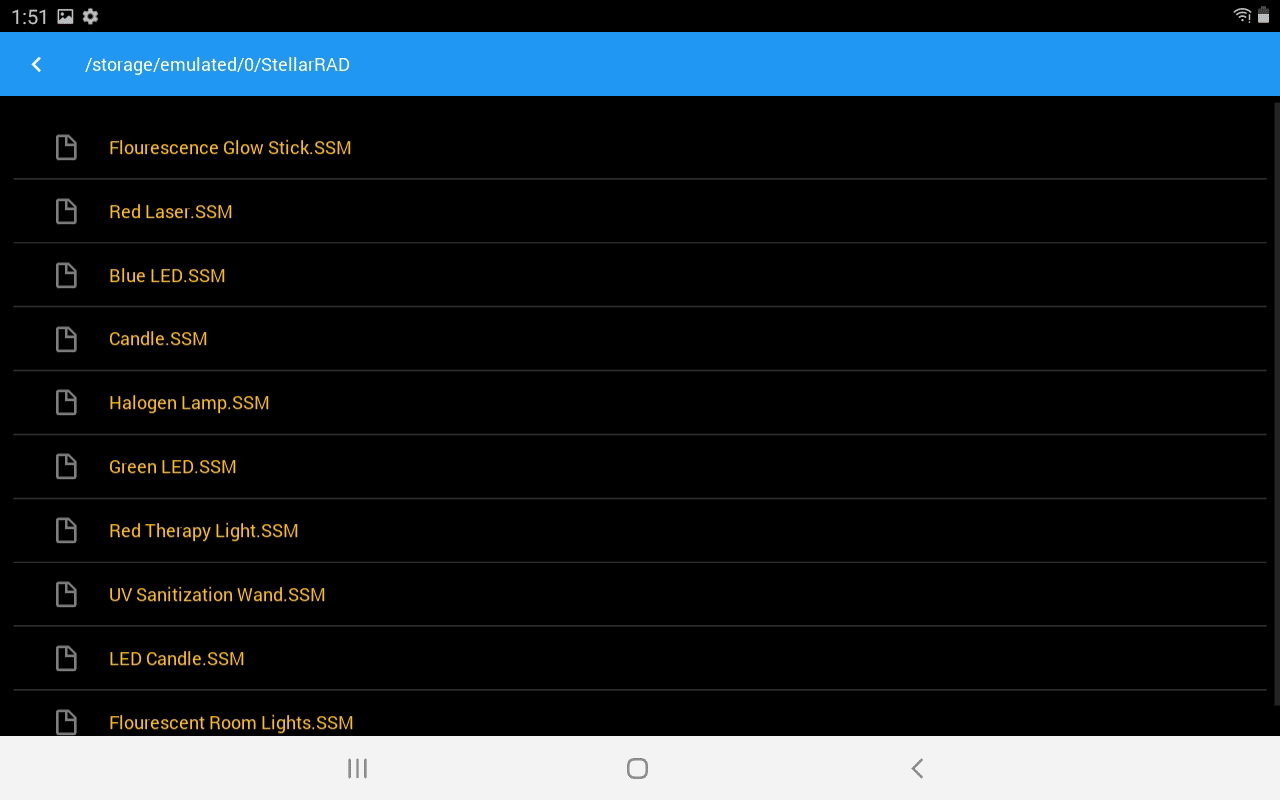

Review Data
Selecting the Review Data menu item allows you to browse all of the existing saved spectra you have taken. All systems will also be delivered with DEMO spectral data. This option lists all .SSM files located in the StellarRAD folder and will open them using the currently loaded calibration file. Most StellarRAD hardware is delivered with only 1 or 2 calibration files. Please make sure to have the correct file loaded when reviewing your data using this option. StellarRAD-Pro software versions 3.5.5 and above the file path is: Internal storage -> Documents -> StellarRAD Pro

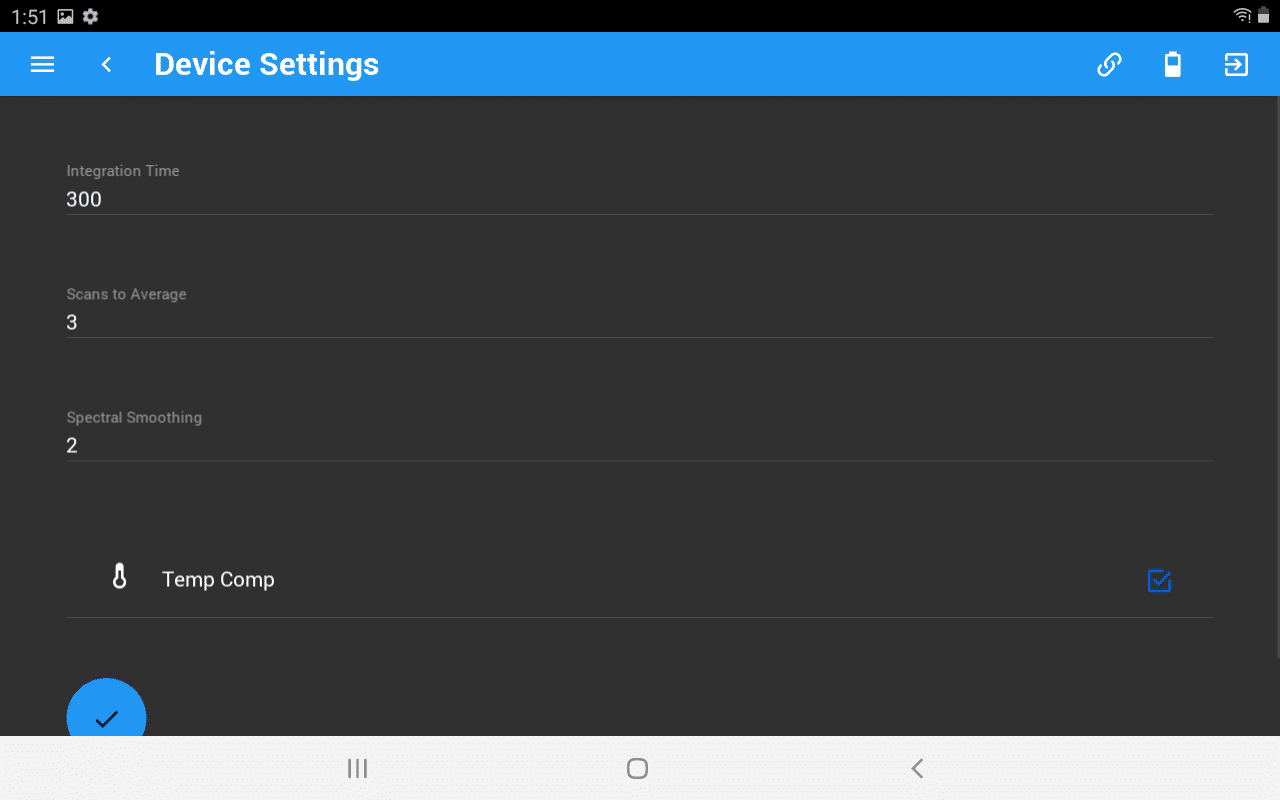

Device Settings
The Device Settings menu option allows you complete control of the main spectroradiometer parameters. These are integration or exposure time, scans to average, and pixel smoothing. You can also toggle on and off temperature compensation. Device setting parameters are saved to a system configuration file and are remembered when the software is re-opened.
App Setup
The App Setup menu option allows you to load or re-load your calibration files, adjust your start and ending wavelength of the calculated power values, and enable/disable the peak finder tool. All calibration files will be found in your StellarRAD directory.
Stellar Themes
This menu option allows you to choose the color theme of the app! Choose from SpectraWizard purple, Celestial blue, Solar Flare red, Alien Invasion green, and Office Wiz white. Or design your own color to go along with your company or university.
