GREEN-Wave Low Cost Spectrometer
for Teaching and Educational Labs Request a QuoteDownload Instrument PDF
Low Cost Spectrometer Features
- Measurements in the 350-1150nm wavelength regions
- Most Affordable model with volume discounts available
- 8 standard models with options for customized wavelength ranges
- Signal: noise = 400:1
- 1x3x5″ compact enclosure allows for eXtreme portability
- New! low power consumption for 2x longer lifetime on tablets/laptops
- Great for teaching and educational labs!

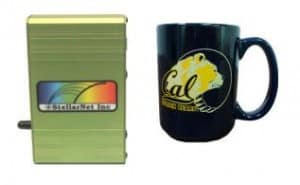

GREEN-Wave small size just 1x3x5 inches!!
The StellarNet GREEN-Wave miniature spectrometers are fiber optically coupled instruments with a wide selection of standard models for measurements in 350-1150nm wavelength ranges.
Various models provide a choice of grating range and slit resolutions. New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 400:1
Ruggedized– The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for undergraduate use!
Multi-unit connection (up to 8) can be daisy chained together and are able to run simultaneously.
USB Powered – GREEN-Wave miniature spectrometers can be powered directly from your PC USB-2 port. A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths. The spectrograph optics are exceptionally robust in a vibration tolerant modular design, with no moving parts.
Onboard Memory with pre-set calibrations and spectrometer settings and snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048.
Green Wave low cost spectrometer- Ruggedized system for field applications (measuring solar emission)
View the Standard Models tab to choose between the various options for the GREEN-Wave spectrometers. If you are interested in UV or UVN (wide range) models you must upgrade to the BLUE-Wave series.
ContactUs@StellarNet.us for teaching lab and multi-unit volume discounts.
Additional Green-Wave measurement applications include emission wavelength monitoring /characterization of tunable lasers or LED’s and other sources such as elemental emissions from plasma & Laser Induced Breakdown Spectroscopy. Colorimetry and Optical Metrology are also common applications for this spectrometer. The small size and weight makes the GREEN-Wave low cost spectrometers just perfect for portable applications.
GREEN-Wave Technical Specifications
Optical resolution: see model
Detector type: CCD 2048 pixels
Detector range: 350-1150nm
Pixel size: 14 x 200um (CCD)
Diffraction Gratings: Holographic & Ruled
Grating g/mm: 300, 600,1200,1800, 2400
Spectrograph: f/4, SymX-Czerny–Turner
Order sorting filters: Integrated & High Pass
Signal to noise: 1000:1
Digitizer: 16-bit
Dynamic range: 2000:1 with 6 decades
Dimensions: 1x3x5"
Weight: 14 ounces
Power consumption: < 100 mA via USB port
Interface Options: USB2
Data Transfer Speed: 30Hz
Slit size options: 14, 25, 50, 100, 200um
Stray light: <.1% at 435nm;<.05% at 600nm
Fiber optic input: SMA-905 0.22na single fiber
Operating systems: Windows and Linux (2), Andriod (2), iOS (2)
Software included: SpectraWiz Program, WinSDK (C,C#,VB, Delphi), Customizable LabVIEW, VBA for Excel (CRI & LED Report)
GREEN-Wave Base Price – $2,250.00 CCD Detectors – Typical Response Predicted Slit Resolving Resolutions
GREEN-Wave Models - Choose your model and slit
| Model | Wavelength Range (nm) | Grating g/mm | Slit-200 nm res. | Slit-100 nm res. | Slit-50 nm res. | Slit-25 nm res. | Slit-14 nm res. |
|---|---|---|---|---|---|---|---|
| VIS | 350-1150 | 600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| VIS2 | 380-780 | 1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR | 500-1150 | 600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| NIR2 | 600-1000 | 1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR2b | 785-1150 | 1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR3 | 550-810 | 1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR3b | 680-935 | 1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR4 | 500-700 | 2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
| NIR4b | 600-800 | 2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
GREEN-Wave Sample Spectra

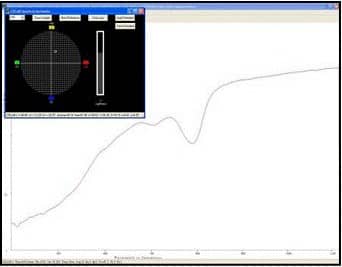

GREEN-Wave-VIS Spectrometer
Color Reflectance and CIELAB color measurement of a Habanero pepper
GREEN-Wave-VIS Spectrometer
Solar Spectrum from 350-1150nm with absolute intensity in W/m^2
12:00pm Tampa, FL
GREEN-Wave spectra of the SL2 mercury+argon gas emission

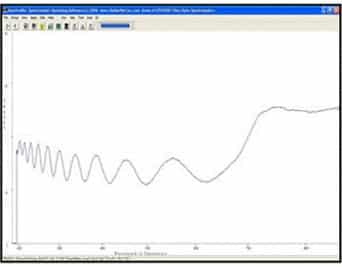

GREEN-Wave-NIR Spectrometer
Thin film transmission measurement from 500-1150nm
The powerful SpectraWiz® spectrometer software is provided free of charge with every spectrometer instrument. This includes drivers and customizable software for Windows. The SpectraWiz software is considered the “Swiss Army Knife of Spectroscopy” and may be used to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities. In addition to real-time spectroscopy, SpectraWiz® has built-in applications for SpectroRadiometry, SpectroColorimetry, ChemWiz chemistry lab concentration analyzer, and UV level monitors.
Download SpectraWiz Software FREE
Units may be daisy chained via USB-2 hub allowing simple configurations for dual and multi-beam process applications. 8 GREEN-Wave spectrometers can be operated at once!
Jack-in Trigger upgrade NOT available for the GREEN-Wave. BLUE-Wave series electronics or newer is required.
The system includes a high speed plug & play interface using USB-2 connection.
- SpectroChemistry Systems
- SpectroRadiometry
- Colorimetry
- Optical Metrology
- Educational Lab Packages
