ChemWiz-ADK™ NIR Feed and Pet Food Analyzers
Handheld, Lab, and Process Instruments for %Fat, Moisture, Protein & Ash Request a QuoteWatch Instrument Demo
Follow Us
StellarNet proudly supports our industrial customers for over 30 years!
Analysis of Pet Foods including Ingredients and Blends
Our Pet Food Analyzer, consisting of combined hardware and software calibration packages, can help you improve consistency and quality of your product during pet food manufacturing. Analyzing parameters such as protein, fat, moisture, and ash in your raw ingredients and final Pet Food blends will help reduce your cost and improve the quality of your pet food products.
Our ChemWiz-ADK-PF (Pet Food) can be configured as handheld, process-line or lab mountable, or a rugged case NIR and can be transported between pet food processing and lab environments. It’s non-destructive and high speed sampling (several seconds per scan) ensures fast and low cost analysis whenever you need it. Become your own lab today!
ChemWiz-ADK Analyzer
Handheld or mountable/modular setup for within production environments. Great for quality control at receiving or trading locations. Great for technicians and routine daily inspections.
ChemWiz-ADK-Case
Portable for field or lab. Open and measure functionality with all hardware contained inside rugged pelican case.
ChemWiz-ADK PRO App “Admin mode” demo running the included starter calibration model for pet food displaying %Fat, Moisture, Protein, & Ash. A new sample is saved and added to the calibration model for the specific kibble blend.

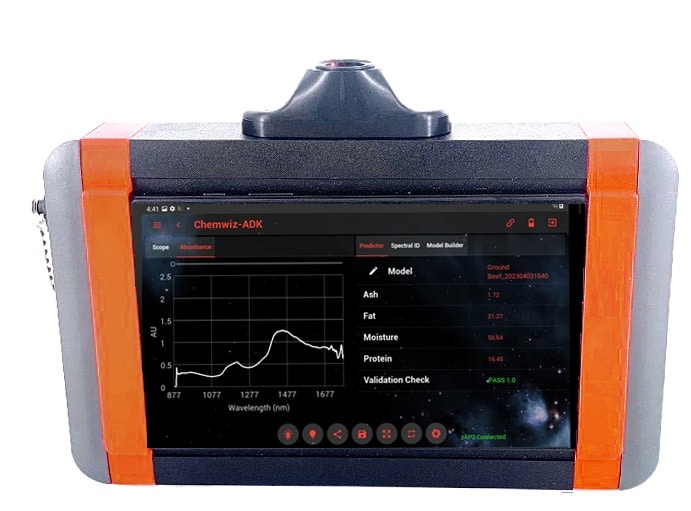

ChemWiz-ADK PRO App “Technician mode” running the included starter calibration model for ground beef displaying %Fat, Moisture, Protein, & Ash.

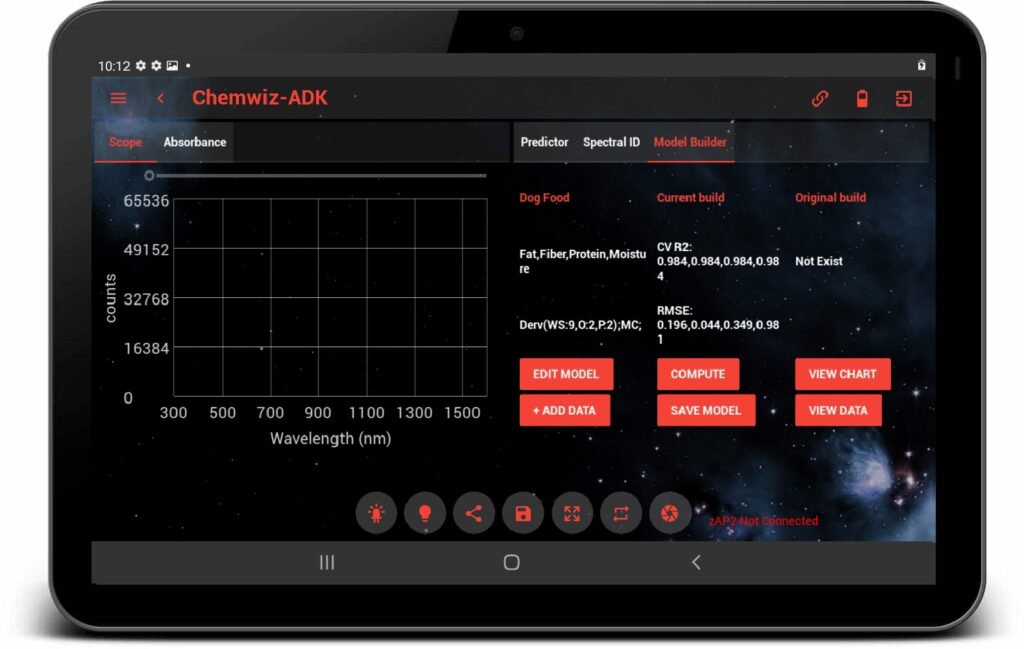

ChemWiz-ADK PRO App “Admin mode” model statistics compare and view. In this panel the admin can add their own samples in real-time to any calibration model. Admins can recompute and improve the chemometrics models with new samples added and compare the model statistics. If the new samples improve the model fit, then the model can be saved or saved as new, or the sample can be discarded and more samples added, repeat. This easy-to-use interface can allows users to customize every calibration model for their own local samples.
Starter Pet Food Kibble Blend Packages
Included with your system is our starter Pet Food Kibble Blend Calibration. This calibration model predicts fat, moisture, protein and ash in a typical pet food kibble blend. The calibrations were generated using over 30 different kibble blend samples varying in composition and has an estimated error of prediction less than +/-1% when measuring similar samples. It is the perfect calibration to get you up and running measuring composition of kibble blend samples.
Kibble Blend Starter Package spectral data and statistics.
StellarNet Pet Food Expert
Stephanie Boxel
813.343.2119
stephanie@StellarNet.us
Additionally, the system includes a starter Chicken Feed Calibration. These calibration models predicts fat, moisture, protein, and ash in these feed samples. The calibrations were generated using over 30 different samples varying in composition and have an estimated error of prediction less than +/-1% when measuring similar samples. It is the perfect calibration to get you up and running measuring composition of chicken feed.
Calibration Model Refinement and Customization
Our Pet Food Analyzers are based on NIR (near-infrared) reflectance technology and the system’s accuracy is based on our starter calibration package and comparability with your own samples.
Our new ChemWiz-ADK PRO App software allows users to refine and customize our starter calibrations to their own local samples. If customers would like additional support, we recommend that along with each ChemWiz-ADK-PF, a Calibration Model Refinement and Customization Service Package be added to guarantee the best possible performance of your system.
Calibration Model Development for Similar Sample Type
There are many types of pet foods, raw ingredients, processing intermediates, and blend formulations that can easily be measured with the ChemWiz-ADK-PF. Our new ChemWiz-ADK PRO App software allows users to easily make new models for their own new sample types. If you would like additional support, we recommend purchasing a Calibration Model Development Service Package along with your ChemWiz-ADK-PF. Calibration model development usually takes just a few weeks and you will be assigned a StellarNet calibration development engineer who will work with you to finalize your custom analyzer solution. We suggest users try using our ChemWiz-ADK PRO software tools to create their own custom calibrations and if they are having difficulties contact our team for support.
