ChemWiz-ADK™ NIR Meat Analyzers
Handheld, Lab, and Process Instruments for %Fat, Moisture, & Protein Request a QuoteDownload Instrument PDF
Follow Us
StellarNet proudly supports our industrial customers for over 30 years!

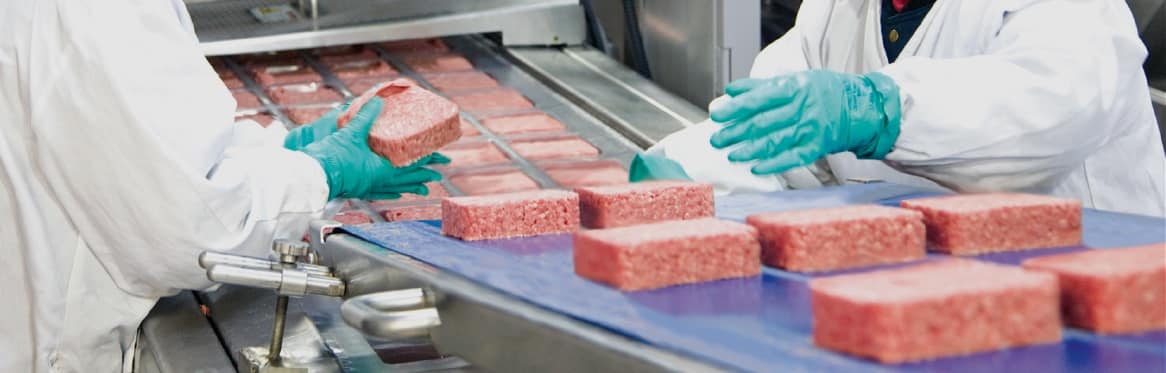

Analysis of Meats including Ground Beef, Pork, and Turkey
Our Meat Analyzers, consisting of combined hardware and software calibration packages, can help improve consistency of many meat processing and sorting applications. This will help you reduce costs and improve quality by monitoring important parameters such as protein, fat, moisture, ash, and much more.
Our ChemWiz-ADK-M (Meats) can be configured as handheld, process-line or lab mountable, or a rugged case NIR and can be transported between meat processing and lab environments. It’s non-destructive and high speed sampling (several seconds per scan) ensures fast and low cost analysis whenever you need it. Become your own lab today!
Now introducing our most affordable option, ChemWiz-Meat Analyzer is a slimmed down version without model building capability for everyday analysis of ground meat products
ChemWiz-ADK Analyzer
Handheld or mountable/modular setup for within production environments. Great for quality control at receiving or trading locations. Great for technicians and routine daily inspections.
ChemWiz-ADK-Case
Portable for field or lab. Open and measure functionality with all hardware contained inside rugged pelican case.
ChemWiz-ADK PRO App “Technician mode” running the included starter calibration model for ground beef displaying %Fat, Moisture, Protein, & Ash.
ChemWiz-ADK Meat Analyzer running the included starter calibration model for ground beef displaying %Fat, Moisture, Protein, & Ash. Also, we use the StellarClass classification algorithm to classify meats based on their fat content.

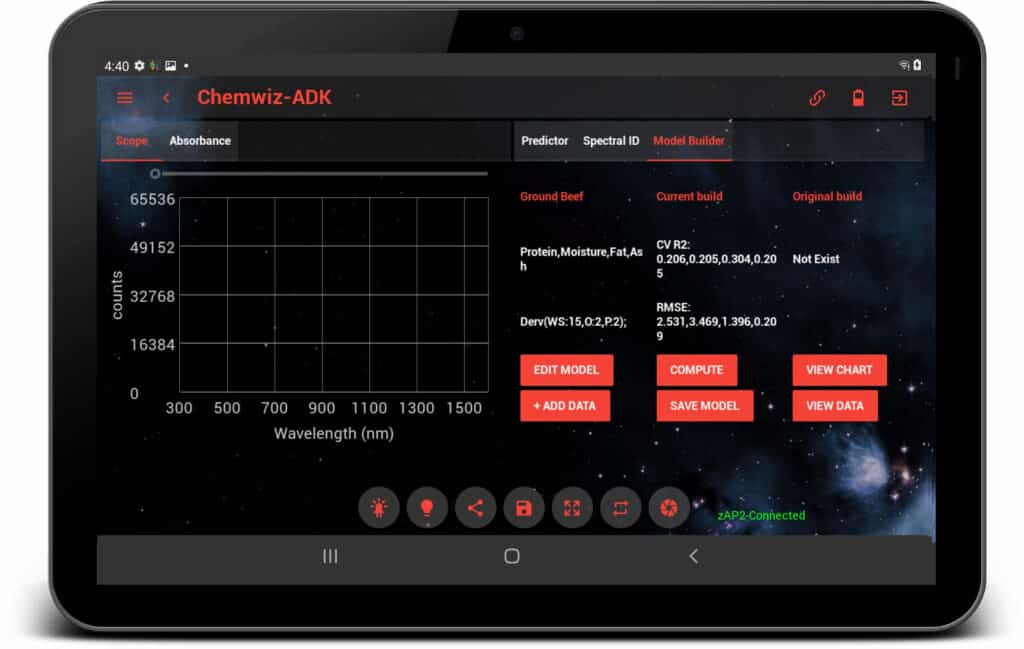

ChemWiz-ADK PRO App “Admin mode” model statistics compare and view. In this panel the admin can add their own samples in real-time to any calibration model. Admins can recompute and improve the chemometrics models with new samples added and compare the model statistics. If the new samples improve the model fit, then the model can be saved or saved as new, or the sample can be discarded and more samples added, repeat. This easy-to-use interface can allows users to customize every calibration model for their own local samples.
Starter Ground Beef Packages
Included with your system is our starter Ground Beef Calibration. These calibration models predicts fat, moisture, protein and ash in ground beef samples. The calibrations were generated using over 60 different ground beef samples varying in composition and has an estimated error of prediction less than +/-1% when measuring similar samples. It is the perfect calibration to get you up and running measuring composition of ground beef.
Additionally, the system includes starter Ground Pork and Turkey Calibrations. These calibration models predicts fat, moisture, protein, and ash in these meat samples. The calibrations were generated using over 60 different ground meat samples varying in composition and have an estimated error of prediction less than +/-1% when measuring similar samples. It is the perfect calibration to get you up and running measuring composition of ground meats.
Calibration Model Refinement and Customization
Our Meat Analyzers are based on NIR (near-infrared) reflectance technology and the system’s accuracy is based on our starter calibration package and comparability with your own samples.
Since we don’t have your samples, there will be room for improvement and each system can be tuned and optimized for your specific samples. Our new ChemWiz-ADK PRO App software allows users to refine and customize our starter calibrations to their own local samples. If customers would like additional support, we recommend that along with each ChemWiz-ADK-M, a Calibration Model Refinement and Customization Service Package be added to guarantee the best possible performance of your system.
Calibration Model Development for Similar Meat Type
There are many types of meats as well as processing intermediates that can easily be measured with the ChemWiz-ADK-M. Our new ChemWiz-ADK PRO App software allows users to easily make new models for their own new sample types. If you would like additional support, we recommend purchasing a Calibration Model Development Service Package along with your ChemWiz-ADK-M. Calibration model development usually takes just a few weeks and you will be assigned a StellarNet calibration development engineer who will work with you to finalize your custom analyzer solution. We suggest users try using our ChemWiz-ADK PRO software tools to create their own custom calibrations and if they are having difficulties contact our team for support.
StellarNet Meat Expert
Stephanie Boxel
813.343.2119
stephanie@StellarNet.us
Technical Information Request
