ChemWiz-ADK Series 3
Handheld NIR Spectrometer with Built in Application Development Kit Request a QuoteDownload Instrument PDF
The ChemWiz-ADK Series 3 Handheld NIR Spectrometer is a rugged and easy-to-use, research grade near-infrared spectrometer for lab and field testing of sample composition with no additional setup required. The built in Analyzer Development Kit allow spectral matching and also user creatable PLS modeling and prediction functionality. Additionally, the ChemWiz-ADK comes pre-packed with Starter NIR calibration models for a variety of applications.
There is no similar portable NIR spectrometer system on the market today with this much functionality! The ChemWiz-ADK utilizes a research-grade spectrometer with <5nm spectral resolution over the near infrared, making these instruments the first choice in reliable testing, field demonstrations, installations, R&D, and quality control.
- Acquire full spectrum NIR analysis of solids, liquids, and powders
- Measure real-time composition analysis such as moisture, protein, fat, and much more!
- Analyze unknown samples using spectral matching algorithms
- Easily create your own libraries
- Built in PLS model builder with statistics and loadable real-time prediction
- Pre-built starter PLS calibrations for a variety of applications
- Save spectra and export as text data files, screenshots, and/or PDF report
- Integrated halogen light and RF-HH snap on reflectance fixture
- Add a reflectance probe, lens, or probe tip for small or hard to reach spots
- Add on CUV-HH snap on cuvette holder or dip probe for liquid samples
ChemWiz-ADK Series 3 Technical Specifications
Sensor: DWARF-Star NIR spectrometer
Spectrometer range: 900-1700nm
Spectral Resolution: <5nm
Integrated Light Source: Halogen
Reflectance Geometry: 45 degree
Digitizer Resolution: 16bit
Optics: Research Grade Crossed Czerny Turner
Wavelength Accuracy: <0.25nm
Tablet Specs: Android
Software included: ChemWiz-ADK App
ChemWiz-ADK Series 3 Pricing and Options
ChemWiz-ADK Series 3 Handheld NIR Spectrometer
ChemWiz-ADK
Handheld NIR Spectrometer for full spectrum and composition analysis of solids, liquids, and powders from 900-1700nm with <5nm spectral resolution. System has built in Analyzer Development Kit (ADK) that includes spectral matching save/search functionality and PLS builder/predictor software to make it the most powerful NIR instrument on the market! ChemWiz-ADK incorporates research-grade DWARF-Star spectrometer optics. It has an 8", high performance Android touchscreen interface that’s both ergonomic and user-friendly. System comes with pre-installed starter calibration models for a variety of sample types. System includes integrated halogen light, snap on reflectance fixture (RF-HH) & RS50 white reflectance standard. System charging supply and USB key also included. $15,495.00
ChemWiz-ADK Additional Accessories
R600-8-VisNIR
Reflectance Probe for VIS-NIR with 7 optical fibers bundled around 1 600μm fiber. $750.00
RTIP45
Diffuse reflectance tip accessory that has 45 degree angle and slides onto reflectance probe and locks to set position. $150.00
RTIP-Lens
Reflectance probe lens tip accessory with focus to <1mm $250.00
RPH2 Reflectance Probe Holder block that maintains a 45 and/or 90 degree angle and user set distance from sample (0-3/4″). $200.00
DP400-VISNIR
Transmission Dip Probe for Vis-NIR $2,300.00
Backup Accessories & Portability
ChemWiz-ADK Series 3 Tablet Replacement or Backup Tablet with pre-installed software and calibrations loaded $350.00
Stellar-PACK The StellarPack accessory includes a backpack with spectrometer mounting plate and mounting hardware. A battery pack is also included and attaches to the mounting plate and provides portable powering options $485.00
ChemWiz-ADK Series 3 User Manual
ChemWiz-ADK Series 3 Software Download
ChemWiz-ADK Pro Version 3.4
ChemWiz-ADK Series 3 FAQ
Can I plug a USB cable into the ChemWiz-ADK’s external USB drive port and connect to a computer?
No, the external USB drive allows you to a access all data that you have saved onto the ChemWiz-ADK’s tablet. This includes spectral data, screenshots, PDF reports and more.
Can I use a regular computer running SpectraWiz or any other program with my CgenWiz-ADK Series 3 device?
Yes, you can use VirtualHere, a USB-over-IP utility, to access the ChemWiz-ADK. You can download VirtualHere Download VirtualHere Win64 or other versions at https://virtualhere.com. Use your regular computer’s WiFi to login to the ChemWiz-ADK’s access point and launch virtual here. Don’t forget you must install SpectraWiz and related drivers on your computer in order for the computer to recognize the device. You will be able to run SpectraWiz and any customizable Windows program
as if you had the device connected directly to your USB port!
Sometimes it takes a minute or so to establish WiFi connection. Is this normal?
The ChemWiz-ADK Series 3 consists of an Android tablet and also a spectrometer server (right side power button). The spectrometer server must power up for about 1 minute before spectral data can stream to the android tablet. The spectrometer server requires minimum power to operate and can be left on during and in between measurements so the system WiFi connection doesn’t have to be continually established.
How can I get the newest version of the ChemWiz-ADK Pro Software?
We are continually updating our Pro software options for our handheld systems. Visit the Google Play store for the most recent versions and download and install directly on your ChemWiz-ADK device.
Earth Day Spectroscopy of Plastics for Recycling

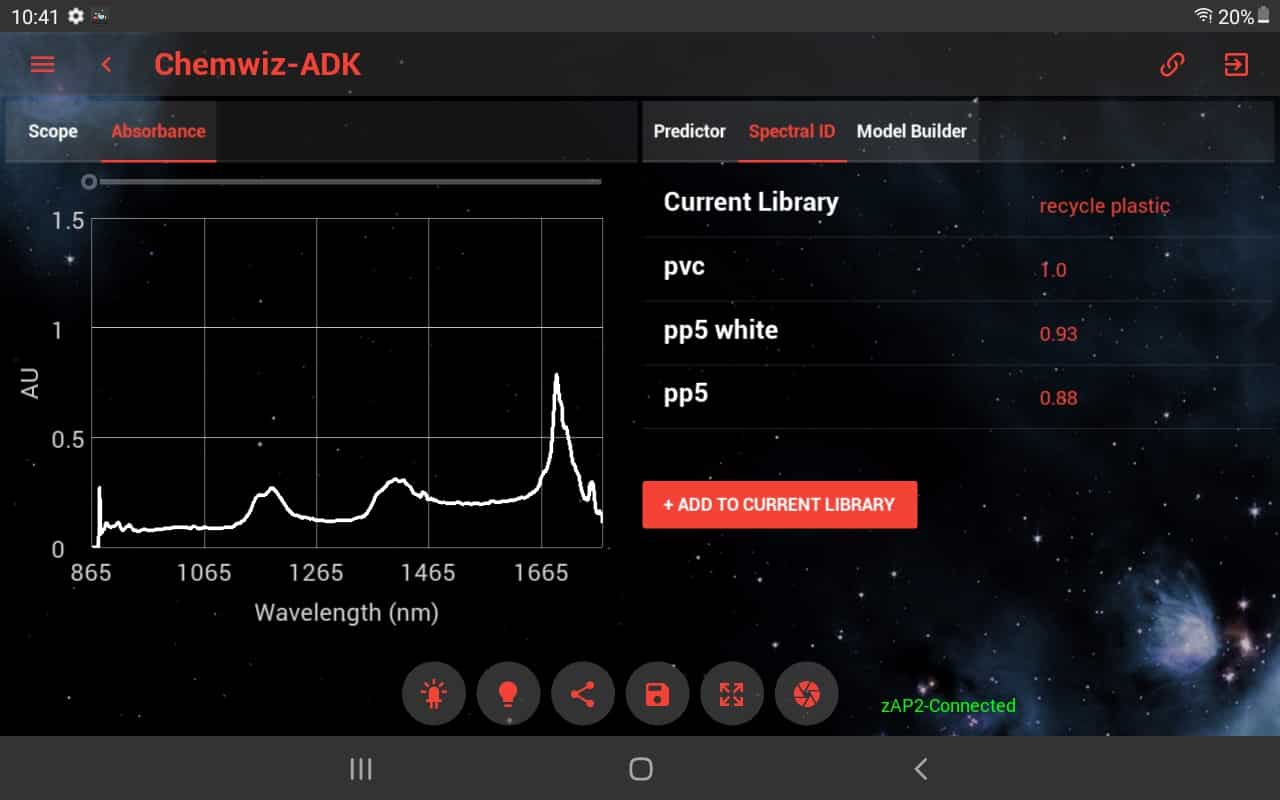

To celebrate Earth Day the StellarNet Team uses spectroscopy to analyze plastics for recycling. The new ChemWiz-ADK handheld NIR spectrometer can easily sort plastics and its app-style interface allows users to create libraries for many sample types. In this Earth Day demonstration, we match PET, HDPE, PVC, and PP plastics in the StellarNet business park!
ChemWiz-ADK Software Interface

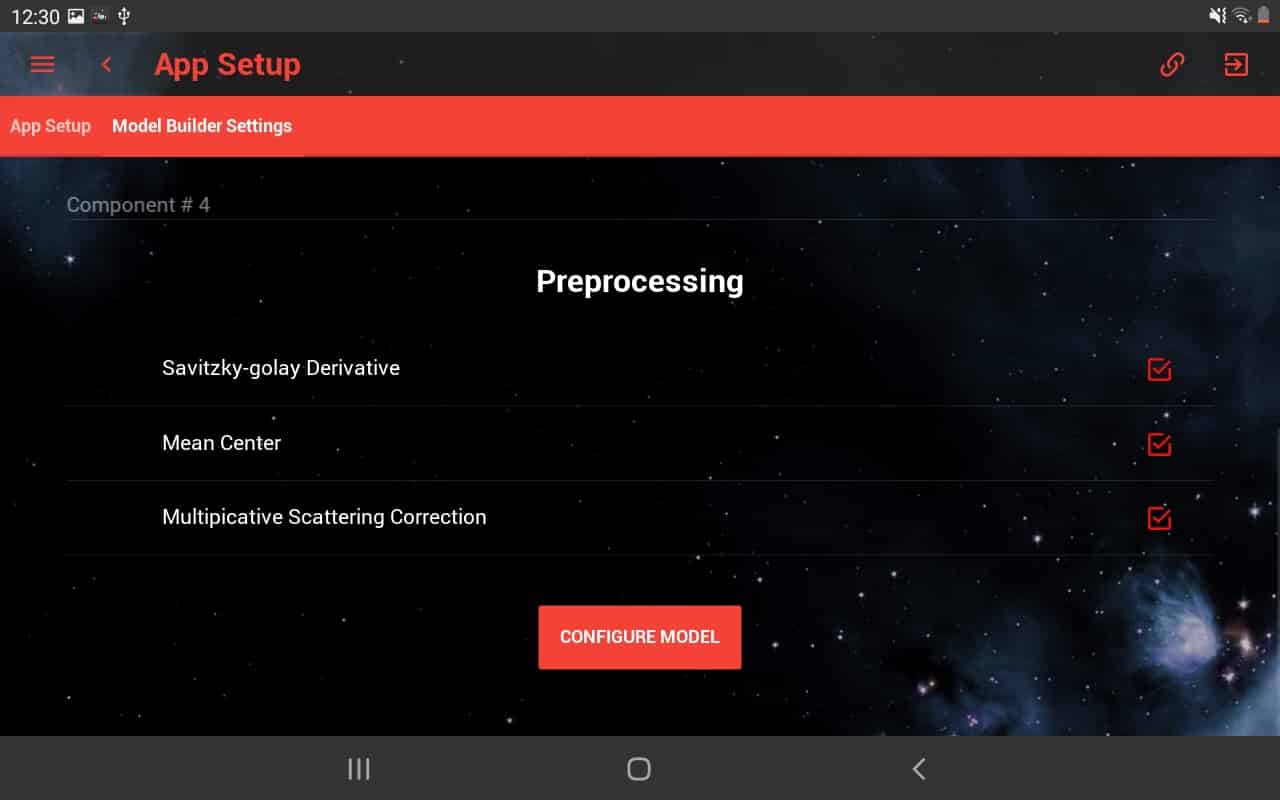

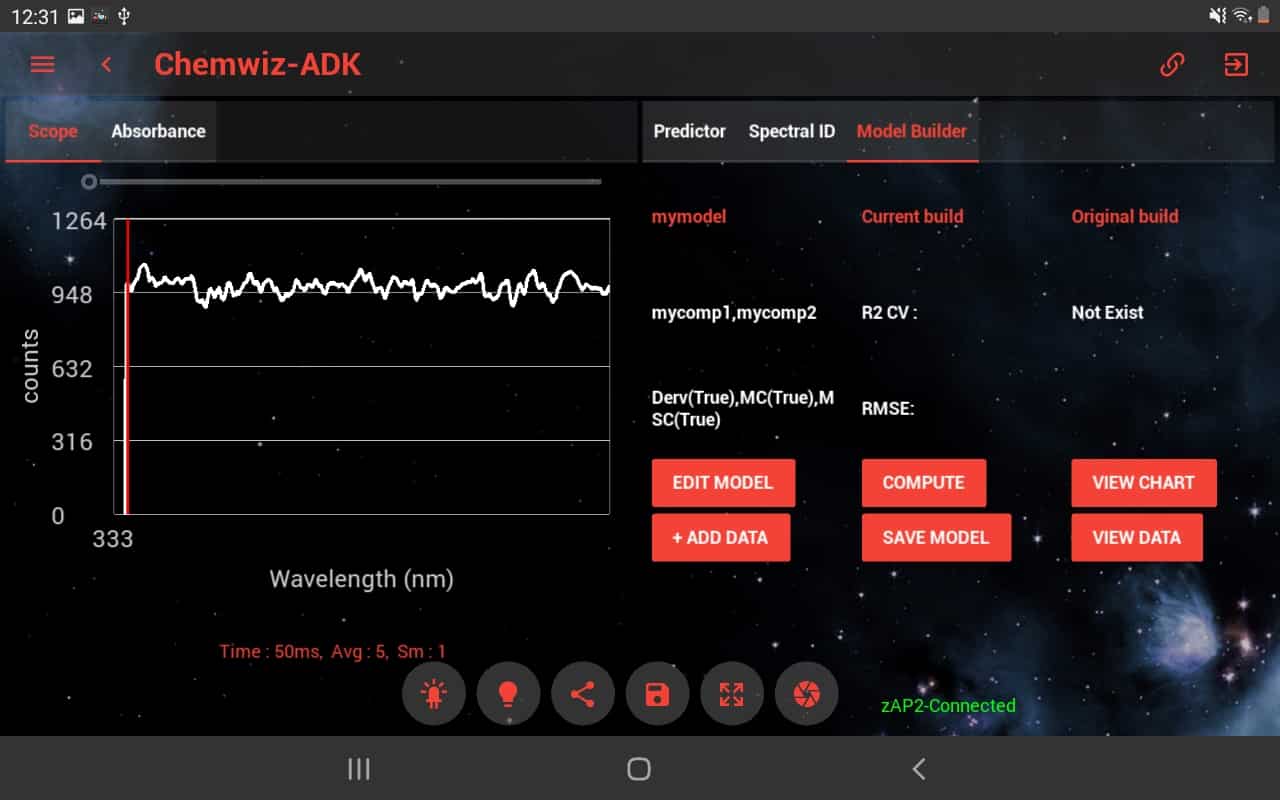

The ChemWiz-ADK PRO App makes real-time composition measurements quick and easy. Acquire full spectrum near-infrared data and use our built in Analyzer Development Kit to predict unknown samples and concentrations. ChemWiz-ADK PRO has a powerful spectral matching algorithm which allows users to saves validated samples to library and search unknowns for matching. Also, the systems offers user creatable PLS modeling and prediction functionality. Create your own chemometrics model quickly and easily. The systems offers a handful of preprocessing algorithms as well as compiled model statistics. Create your own analyzer with the new handheld NIR spectrometer system. Additionally, the ChemWiz-ADK comes pre-packed with Starter NIR calibration models for food and agriculture applications as well as spectral databases for plastics and nutraceutical ID.
Accessories for any Sample Type
ChemWiz-ADK Handheld NIR Spectrometer can be connected to a R600-8-VisNIR reflectance probe to measure smaller samples such as a chili pepper or test a “hard to reach” location. Additionally, you can add the probe lens, 45 degree tip holder, or just about any other reflectance accessory for more repeatability and measurement function. You can also measure liquid samples with a DP400-VISNIR Dip Probe or our CUV-HH snap-on magnetic cuvette holder.
ChemWiz-ADK Applications – Food, Beverage, & Agriculture
With field portable, rugged design and rapid results, the handheld ChemWiz-ADK is suitable for variety of sample types across many industries. From compositional analysis to process optimization and quality control, the ChemWiz-ADK will allow you to determine multiple parameters simultaneously. Incoming raw materials are easily measured to verify they meet all specifications certified by the vendor and batch ratios can be monitored for uniformity, ensuring a quality final product, avoid over-processing, and much more.
