Raman Spectrometers, Lasers, and Probes
532nm, 785nm,1064nm & more Request a QuoteDownload Instrument PDF- Compact and Research Grade Raman Systems for quick identification of a variety of liquid, solid, or powder samples
- Raman Systems include a high performance Raman spectrometer, High power Laser, and Raman probe
- Standard Raman wavelengths include 532, 785, and 1064nm with many custom options such as 405, 633, 637, 648, 830nm!
- SpectraWiz ID Raman Library with Save and Search functionality included FREE. Save your samples and then search for matches!
- Microscope Accessory Pack available for micro Raman applications as well as affordable SERS strips for trace substance analysis
Preconfigured Raman Systems
Preconfigured Raman-785 Vial System
The Preconfigured low cost 785nm Raman Spectrometer system contains everything you need for Raman Spectroscopy at 785nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-Vial Raman laser with adjustable power from 0-499mW with an integrated vial holder and Raman collection optics and the Raman-HR-TEC-785 thermo electrically cooled Raman spectrometer for high resolution and high sensitivity. A set of 25 Raman Vials and Raman safety goggles are also included.
Preconfigured Raman-785 System
The Preconfigured 785nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 785nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-785 Raman laser with adjustable power from 0-499mW, the Raman-HR-TEC thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe and RPH4 probe holder with sample vial chamber. Preconfigured system also comes with a set 25 Raman Vials, SER-30 package of SERS substrates and Raman safety goggles.
Preconfigured Raman 532nm System
The Preconfigured 532nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 532nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Laboratory Raman laser (Lab-LS-532) with 100mW output power, the Raman-HR-TEC-532 thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe. System also comes with a 25 pack of Raman Vials and safety goggles.
Preconfigured Raman-1064 System
The Preconfigured 1064nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 1064nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-1064 Raman laser with adjustable power from 0-499mW, the Raman-HR-TEC-1064 (1024 pixel) thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe. System also comes with a 25 pack of Raman Vials and safety goggles.
StellarCASE-Raman Analyzer
StellarCASE-Raman portable Raman case system includes a Ramulaser™ 785nm Raman laser with adjustable power knob. Standard systems are equipped with a TE cooled Raman spectrometer for a detection range of 200-2750cm-1 with options for other ranges or configurations. Standard systems are equipped with an 8 hour battery life for field use and portable application and SpectraWiz ID comes pre-installed on the system’s tablet computer for molecular ID and Library Search.
StellarRAM Handheld Raman Analyzer
StellarRAM Raman Analyzer is a handheld and user friendly Raman system for both technical & non-technical users to make identifying substances & collecting Raman spectra simple. The system includes an integrated 785nm red laser, spectrometer, and touch screen interface. Software is “App Style” and includes libraries for chemical identification, explosives, narcotics, food additives, and much more.
Standard Raman Spectrometer Models
StellarNet offers a variety of high performance spectrometers configured for Raman spectroscopy applications that perform quick identification of a variety of liquid, solid, or powder samples. Raman-HR-TEC spectrometers include enhanced CCD array detectors for 405, 532, 633, 785, 830 and custom Raman with advanced detector lens assembly for ultra sensitivity at long exposure times. Raman-HR-TEC-X2 offers 2-stage detector cooling for ultimate sensitivity and performance! Raman-ER-TEC are available for certain models and contain extended range wavelengths. Also Raman-SR or standard resolution are also available. These models are compact and typically used in OEM applications where customers integrated into their own Raman products. StellarNet Raman-HR-TEC-1064 spectrometers includes a super cooled InGaAs photodiode arrays for 1064nm Raman where interference from sample fluorescence is minimized and virtually non-existent. As always with StellarNet instrumentation, the fiber optically coupled Raman spectrometer series is extremely ruggedized and compact for portable and field applications.
HYPER-Nova spectrometers offer high performance spectroscopy measurements in a compact form factor. HYPER-Nova spectrometers use a Low Dark Current Deep-Depletion (LDC-DD) technology to provide lower background noise than is possible with traditional back- illuminated technologies. HYPER-Nova’s CCD detector is vacuum sealed and cooled to -60 °C with peak quantum efficiencies up to 95%! The HYPER-Nova comes in a variety of wavelength configurations including specialty configurations for Raman spectroscopy and custom low light applications.
The Quasar Spectrometer comes with our new high throughput f/2 optical design for Raman spectroscopy with increased photon collection over 10x! This translates into taking spectroscopic measurements 10x faster, reducing noise, and increasing detection limits astronomically.
Optical Resolution: | Model Dependent |
---|---|
Signal to Noise: | 1000:1 |
Detector Type: | Enhanced CMOS/CCD with 2048 pixels |
Diffraction Gratings: | 1200/1800 g/mm with gold surface |
Spectral Range @785nm | Model Dependent |
Stray Light: | <0.05% |
Exposure Times: | - 20s without TEC - 60s with TEC - 8 minutes with TEC-X2! |
Dimensions: | Model Dependent |
Weight: | Model Dependent |
Power Consumption: | <100mA , USB powered or 5VDC with TEC |
Fiber Optic Input: | SMA-905 |
Interface: | USB2 |
Operating Systems: | WinXP, Vista, Win 7/8, Win 10 |
Software: | SpectraWiz, SpectraWiz-ID, LabView, Spectroscopy Pro-tools, Delphi, C, C# |
![extreme 2-stage TE Cooler for Raman and SILVER-Nova](https://www.stellarnet.us/wp-content/uploads/extreme-2-stage-TE-Cooler-for-Raman-and-SILVER-Nova-300x210.jpg)
Thermoelectric detector cooling improves the stability of the detector for lengthy measurements where thermal noise can distort and override signal. In order to achieve such low temperatures the 2-stage eXtreme TEC add-on includes a new sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation.
![Noise Reduction with 2-stage extreme TEC](https://www.stellarnet.us/wp-content/uploads/Noise-Reduction-with-2-stage-extreme-TEC-300x218.jpg)
Noise Reduction with 2-stage extreme TEC
Add-on your eXtreme TEC today for just $2,950! ContactUs@StellarNet.us for a quotation or get in touch with your local StellarNet representative.
Raman-HR Spectrometer Range, Resolution, & TEC Options
SR = Standard Range HR = High Resolution ER = Extended Range
Raman Spectrometer Model Laser Wavelength (nm) Wavelength Range (cm-1) Resolution (cm-1) Integrated 1-Stage TE Cooler TEC-X2 Option Available

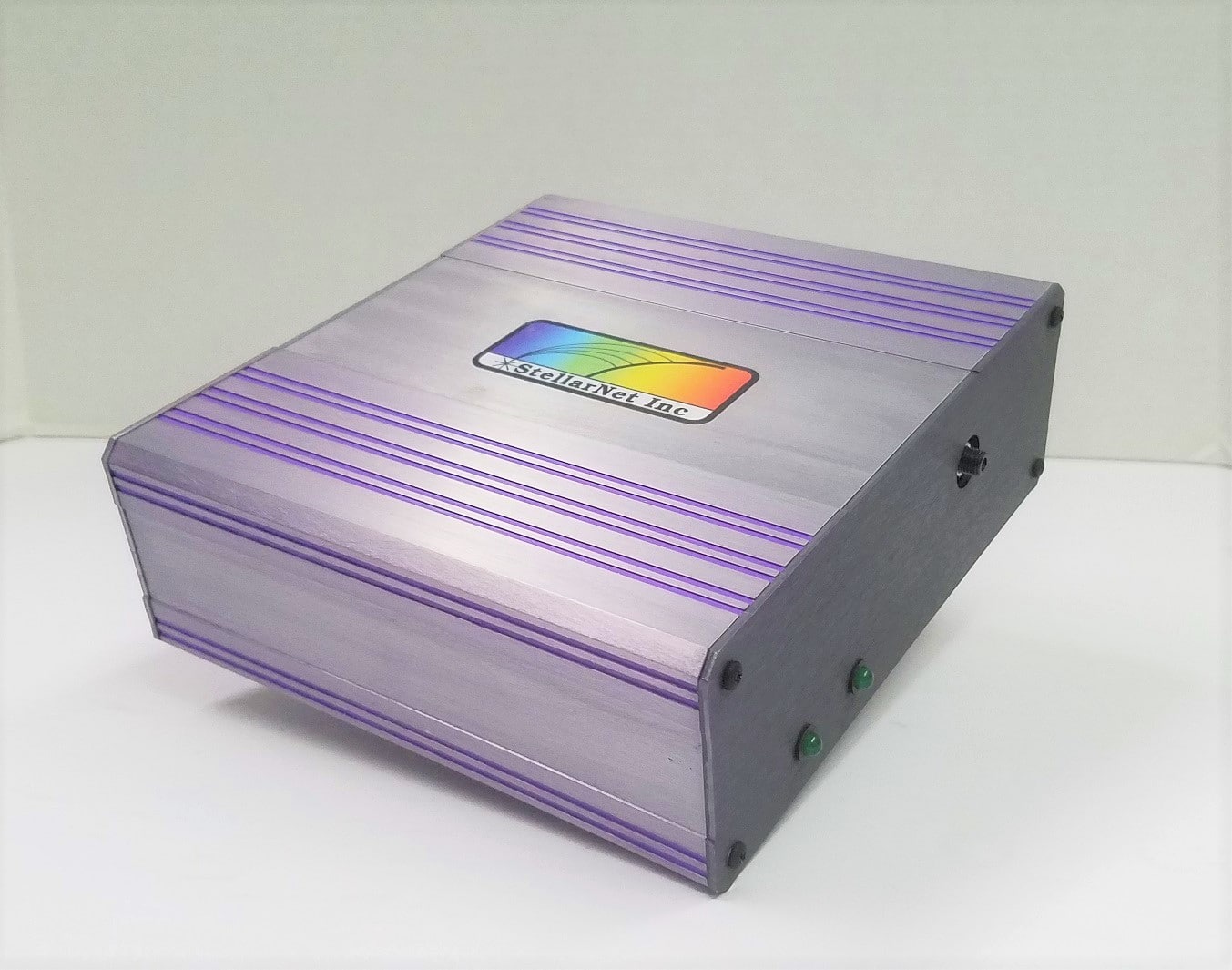

Raman-HR-TEC-405 405 200-5,050 9 Yes Yes
Raman-ER-TEC-405 405 200-8,250 15 Yes Yes
Raman-HR-TEC-532 532 200-3,100 5 Yes Yes
Raman-ER-TEC-532 532 200-5,250 9 Yes Yes
Raman-HR-TEC-633 633 200-3,900 6 Yes Yes
Raman-HR-TEC-785 785 200-2,750 4 Yes Yes
Raman-SR-785 785 200-3,200 8 No No

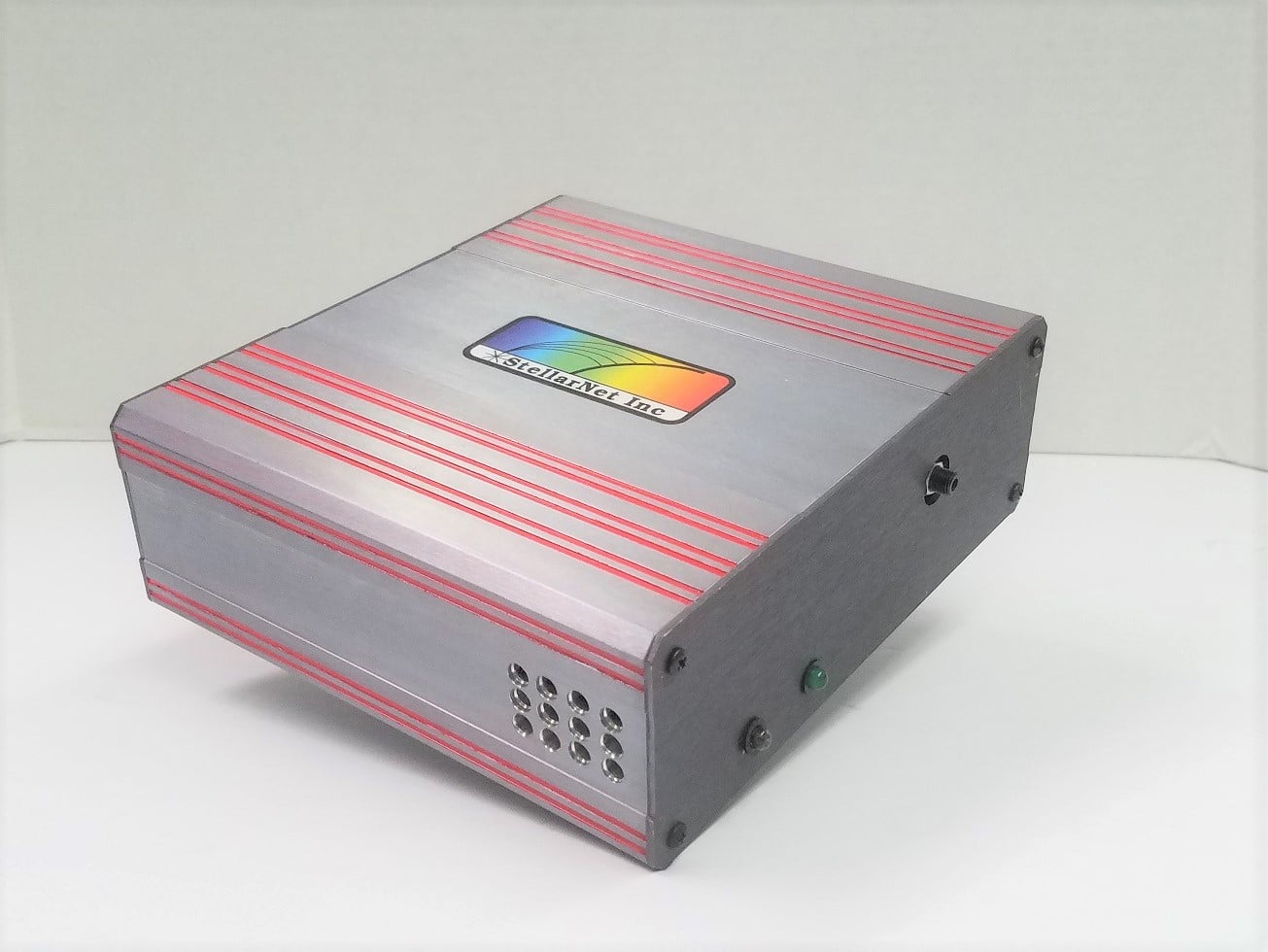

Raman-HR-TEC-830 830 200-2,400 4 Yes Yes
Raman-HR-TEC-1064 1064 200-2,250 11 No Included
HYPER-Nova Raman Spectrometer Models
*Custom wavelength ranges also available
Raman Spectrometer Model Laser Wavelength (nm) Wavelength Range (cm-1) Resolution (cm-1) LDC Technology
HYPER-Nova-532 532 200-3,500 7 Yes
HYPER-Nova-785 785 200-2,750 cm-1 4 Yes
Quasar Raman Spectrometer Wavelength Range
(cm-1)10x Optical Gain Resolution (cm-1) Detector Cooler Package
~°C Below Ambient
Quasar-532 200-4,500 Yes 9 TEC-1,15°C
Quasar-532-TEC-X2 200-4,500 Yes 9 TEC-X2, 30°C
Quasar-532-UC 200-4,500 Yes 9 UltraCool Vacuum, 80°C
Quasar-TEC-785 200-2,750 Yes 4 TEC-1, 15°C
Quasar-785-TEC-X2 200-2,750 Yes 4 TEC-X2, 30°C
Quasar-785-UC 200-2,750 Yes 4 UltraCool Vacuum, 80°C
Quasar-1064 200-2,250 Yes 11 TEC-X2, 30°C
Raman-HR-TEC Spectrometer Wavelengths
High Performance Raman Spectrometers
Raman Laser Options
Ramulaser™ 785nm & Ramulaser™ 1064nm
- 785/1064nm Raman Laser attaches to Raman-Probe via standard FC/APC connector
- Raman Laser line 0.2nm FWHM
- 499mWatt adjustable power
- Battery powered in Ruggedized metal case
- Miniature size just 2x4x6″
- Li-ion Battery Powered All Day
- Add Raman- Probe- 785 and spectrometer
![](https://www.stellarnet.us/wp-content/uploads/Ramulaser-vial.jpg)
Ramulaser-Vial-
Reduce cost with integrated probe!
- 785nm Raman Laser with direct attach 1/2″ vial holder
- Raman Laser line 0.2nm FWHM
- 499mWatt adjustable power
- Direct attach to spectrometer reduces probe cost
- Holds 1/2″ round sample vials- liquids, powders, and solids
- Miniature size just 2x4x6″
- Li-ion Battery powered in Rugged metal case
Raman Laboratory Laser Mainframe
Lab-LS Laser System
- Designed for use in the laboratory
- Interchangeable Modules
- Configurable Wavelengths
- Adjustable Power
- Turn key systems and OEM modules
- Typically recomneded for 532nm & custom wavelengths
![](https://www.stellarnet.us/wp-content/uploads/explanatory-warning.jpg)
Raman Microscopes, Probes, Accessories, Libraries, & Software

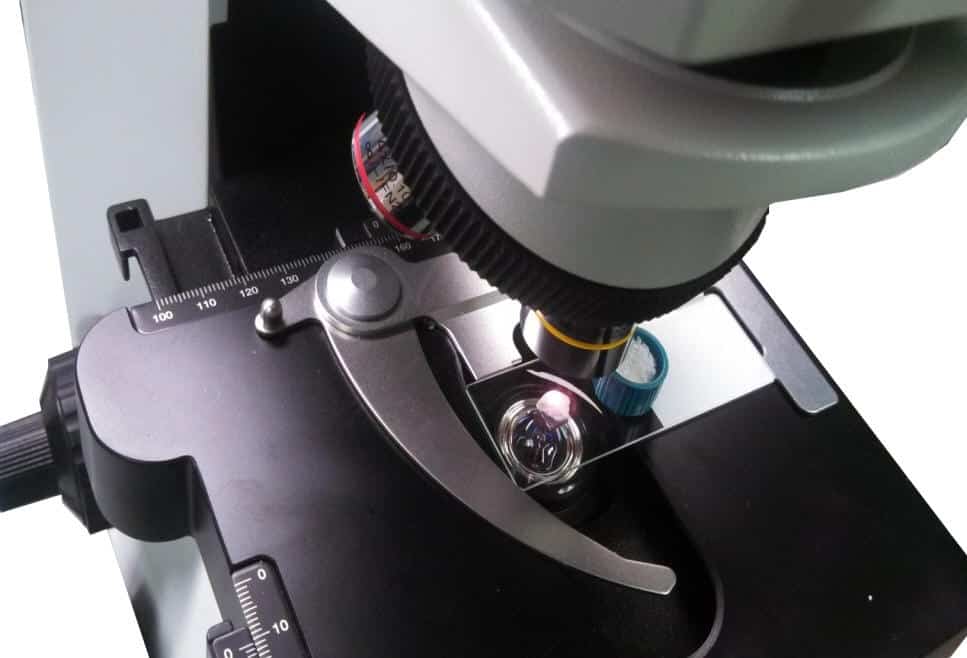

Raman Microscope Upgrade
Research Microscope with 4, 10, & 40x objectives providing <50um spot sizes
Modular & Compatible with 532, 785, 830, & 1064nm spectrometers and lasers
Multi-Wavelength Systems 532nm +785nm available for complete research system
Hi-Res Images via CMOS 1.3 Mpixel Camera and optical switch
Surfaced Enhanced Raman Substrates (SERS)
Flexible & Quick sample application in the form of pipetting, dipping, or swab. There is no required sample drying and detection can be made in seconds!
Excellent Shelf-life SERS provides a dependable and guaranteed level of enhancement without special storage conditions.
Low sample cost due to its unique nanostructure deposition process.
Raman Probes & Probe Holders
Many Wavelengths Available such as 532, 633, 785, & 1064nm are standard “in stock” options. Custom wavelengths are usually no problem.
Easily Connectable – Connects to Raman Laser sources and Raman spectrometer detectors.
High throughput collection – Collection optical fiber to the spectrometer is 600um core diameter providing 2-3x signal enhancement compared to typical probes.
Raman Libraries & Spectral-ID Matching Software

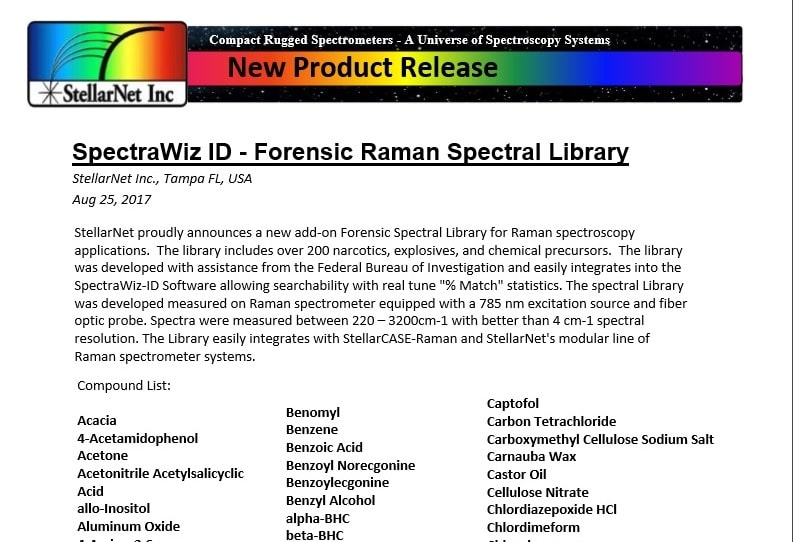

Forensic Raman Library – includes over 200 narcotics, explosives, and chemical precursors. more info
SpectraWiz ID – included software with save search functionality allows users to save sample spectra to a specified library, then later perform a real time search using unknown samples to look for matches. The powerful SpectraWiz-ID software has a series of processing algorithms to compensate spectral baseline offsets and minimize effects due to off-axis scattering and fluorescence.
Spectroscopy Pro-tools and many other software packages available for advanced features such as interactive multi-spectrum plots, tons of options for spectral processing and display
Compatible with many other databases using simple text files.
Easy to use with many other features built in
Choosing a Raman Spectrometer System’s Excitation Wavelength
When choosing a Raman instrument, one of the primary concerns is the wavelength of the laser that is integrated into the Raman spectrometer system. A samples Raman signature and the peak position is related to the samples unique chemical structure and is independent of the excitation wavelength, so the molecular fingerprint will be the same regardless of the excitation laser wavelength. Different laser frequencies provide specific strengths and weaknesses allowing a user to optimize the measurement of different samples by their choice of Raman laser. The three most popular Raman spectrometer wavelengths are 532nm, 785nm and 1064nm.
532nm | 785nm* | 1064nm | |
---|---|---|---|
Raman signal efficiency | High | Medium | Low |
Fluorescence (Potential interference signal) | High | Medium | Low |
Heat absorption from laser (Sample Breakdown) | Low | Medium | High |
How do I convert Raman wavenumber shift (cm-1) to nanometers (nm)?
Try using our Raman wavenumber shift to nanometer converter. Enter in your laser frequency, wavelength range, and press the conversion buttons!
Raman Spectrometer System Sample Spectra
Raman Spectroscopy with a 785nm Raman Spectrometer and laser is our most popular option. Choose the Ramulaser-785, Raman-HR-TEC (or new Raman-HR-TEC-X2 upgrade), Raman-probe-785nm, Raman probe holder, and 785nm Laser Safety Goggles.
Pharmaceutical Match Test- Raman-HR-TEC 785nm Raman spectra of Tylenol (Acetaminophen/Paracetamol) displaying Library search hit of Tylenol as #1 and Excedrin (containing Acetaminophen/Paracetamol) as #2.

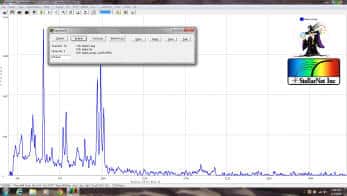

Raw Material ID of Maltol–
The Raman-HR-TEC Spectrometer is used to capture the Raman spectrum of a powdered Maltol sample in a 1/2″ vial using the Ramulaser-785 & Raman-Probe-785. StellarNet’s free SpectraWiz software performs a Library search displaying Maltol as the #1 hit. Maltol is a naturally occuring organic compound primarily used as a sweetener and a flavor enhancer.
Raman Spectra of Minerals – Fluorite
Raman spectroscopy is being used more and more in the analysis of rocks and minerals. Raman is very sensitive to end-member functional groups like -OH and -CO2 and is well suited for silicate and carbonate minerals. Raman can identify minerals that NIR or other techniques may be blind to and can even identify different forms of carbon.
532nm Raman Sample Spectra
Choose the Laboratory Laser 532, Raman-HR-TEC (or new Raman-HR-TEC-X2 upgrade), Raman-probe-532nm, Raman probe holder, and 532nm Laser Safety Goggles.

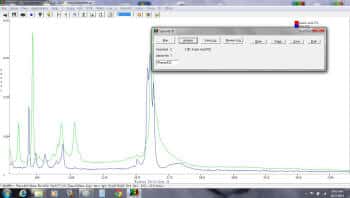

532nm Raman Spectra of Acetic Acid using StellarNet Raman-HR-TEC (configured for 532nm lasers), Raman-Probe-532, and the Lab-LS-532. Additionally, probe holder and laser safety goggles are required with every system.
![](https://www.stellarnet.us/wp-content/uploads/Graphene.jpg)
532nm Raman Spectra of Graphene & Graphite samples using StellarNet Raman-HR-TEC-X2 (configured for 532nm lasers), Raman-Probe-532, and the Lab-LS-532. Additionally, probe holder and laser safety goggles are required with every system.
1064nm Raman System Spectra
Raman Spectroscopy with a 1064nm Raman spectrometer and laser is a popular system for reducing sample fluorescence. Choose the Ramulaser-1064nm, Raman-HR-TEC-IG, Raman-probe-1064nm, Raman probe holder, and 1064nm Laser Safety Goggles.

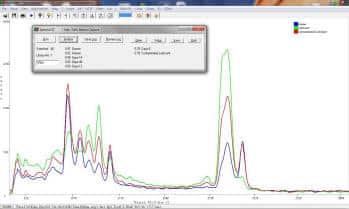

Raman of Impurities in Lubricants
1064nm Raman spectra of pure lubricant, lubricant with impurity, and impurity with identifiable Raman peaks showing feasibility of qualitative & quantitative analysis of impurity.

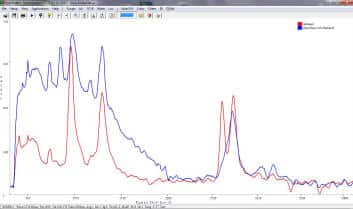

1064nm Raman of Rum w/Methanol Impurity-
Raman spectra of Rum with methanol spike using the Raman- Probe-1064, Ramulaser-1064, and Raman-SR-TEC-IG spectrometer. The probe is held directly up to the side of the Rum bottle. Comparison with pure methanol shows similar peaks and means for detection.
1064nm Raman Spectrum of Aleve gelcap
![](https://www.stellarnet.us/wp-content/uploads/Raman-for-education-labs.jpg)
Modular & Rugged for your Lab-
Ask us about our .edu Raman packages. Add a microscope for low cost Raman Microscopy or use our affordable SERS strips for signal enhancement.
Raman Systems Options and Pricing
Popular Raman Spectrometers-visit individual 405, 532, 633, 785, 830, 1064nm pages for more info
Raman-HR-TEC-532
Raman Extended Range + High Resolution for 200-5250 cm-1 @ 532nm with 9 cm-1 resolution plus additional Thermo Electric Cooler (TEC) for increased S/N with detector integration times > 3 seconds. 1-stage TEC maintains -15 degrees and reduces noise by 50%. $6,000.00
Raman-HR-TEC-785 Raman High Resolution for 200-2750 cm-1 @ 785nm with 4 cm-1 resolution plus additional Thermo Electric Cooler (TEC) for increased S/N with detector integration times > 3 seconds. 1-stage TEC maintains -15 degrees and reduces noise by 50%. $6,000.00
Raman-HR-TEC-X2-532/785 "
High Resolution configuration for 200-2750 cm-1 @ 785nm with 4 cm-1 resolution. Spectrometer includes high sensitivty detector lens assembly, 16-bit low noise electronics, high resolution slit, and 2-Stage Thermoelectric detector cooler. The 2-Stage eXtreme TEC maintains a constant -30 degrees below ambient temperature and increases signal to noise by reducing noise effects by over 80% at long exposures (<3000ms). TEC includes a sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation $8,950.00
Raman-HR-TEC-1064
Raman High Resolution for 200-2250cm-1 @ 1064nm with 11 cm-1 resolution via PDA with TEC cooled 1024 pixel InGaAs photodiode array. Minimize fluorescence via 1064nm laser! $24,630.00
HYPER-Nova- 532\785
High performance 532 or 785nm Raman Spectrometer with low noise, front-illuminated CCD cooled to -60 deg C. Various wavelength options available. Comes with Spectroscopy Pro-Tools spectral acquisition software. $27,500.00
HYPER-Nova-BIDD 532\785
High performance 532 or 785nm Raman Spectrometer with low noise, back-illuminated and deep-depleted CCD cooled to -60 deg C. Various wavelength options available. Comes with Spectroscopy Pro-Tools spectral acquisition software $32,500.00
Popular Raman Lasers -visit individual laser pages for more info
RamuLaser-785
Portable Raman Laser for 785nm with 350/499mW adjustable output and FC/APC attachment for standard Raman probe. Includes integrated LI battery with charger for 8 hour operation. $6,500.00
RamuLaser-1064
Portable Raman Laser for 1064nm with 350/499mW adjustable output and FC/APC attachment for standard Raman probe. Includes integrated LI battery with charger for 8 hour operation. $6,500.00
Lab-LS-785/532 Laboratory 785nm Raman Laser Source with adjustable 350mW output power (optional 500mW). 532nm model with 100mW also available! $9,000.00
Ramulaser-Vial Portable Raman laser vial for 785nm, 500mW adjustable output power, 0.2nm FWHM laser with integrated collection optics for direct attach to spectrometer NEW! Reduces system cost and portability $8,000.00
Raman Accessories & Upgrades Pricing
All data and statements contained herein are subject to change in accordance with StellarNet’s policy of continual product improvement. Please contact us about availability of additional laser frequencies used for Raman such as 405/532/633/785/830/1064. Raman Spectroscopy may not work for your application please contactus@stellarnet.us to perform a free feasibility study.
Raman- Probe-532 Attaches to 532nm laser via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics (working distance– 4.5mm), high efficiency collection fibers for StellarNet Raman spectrometers $3,745.00
Raman- Probe-785 Attaches to 785nm laser via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics (working distance– 4.5mm), high efficiency collection fibers for StellarNet Raman spectrometers $3,445.00
Raman-Probe-1064 Attaches to source via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics with working distance of 4.5mm to sample. $3,745.00
RPH4 Raman Probe Holder Block for the Raman- Probe. Accepts vials and solid samples. $300.00

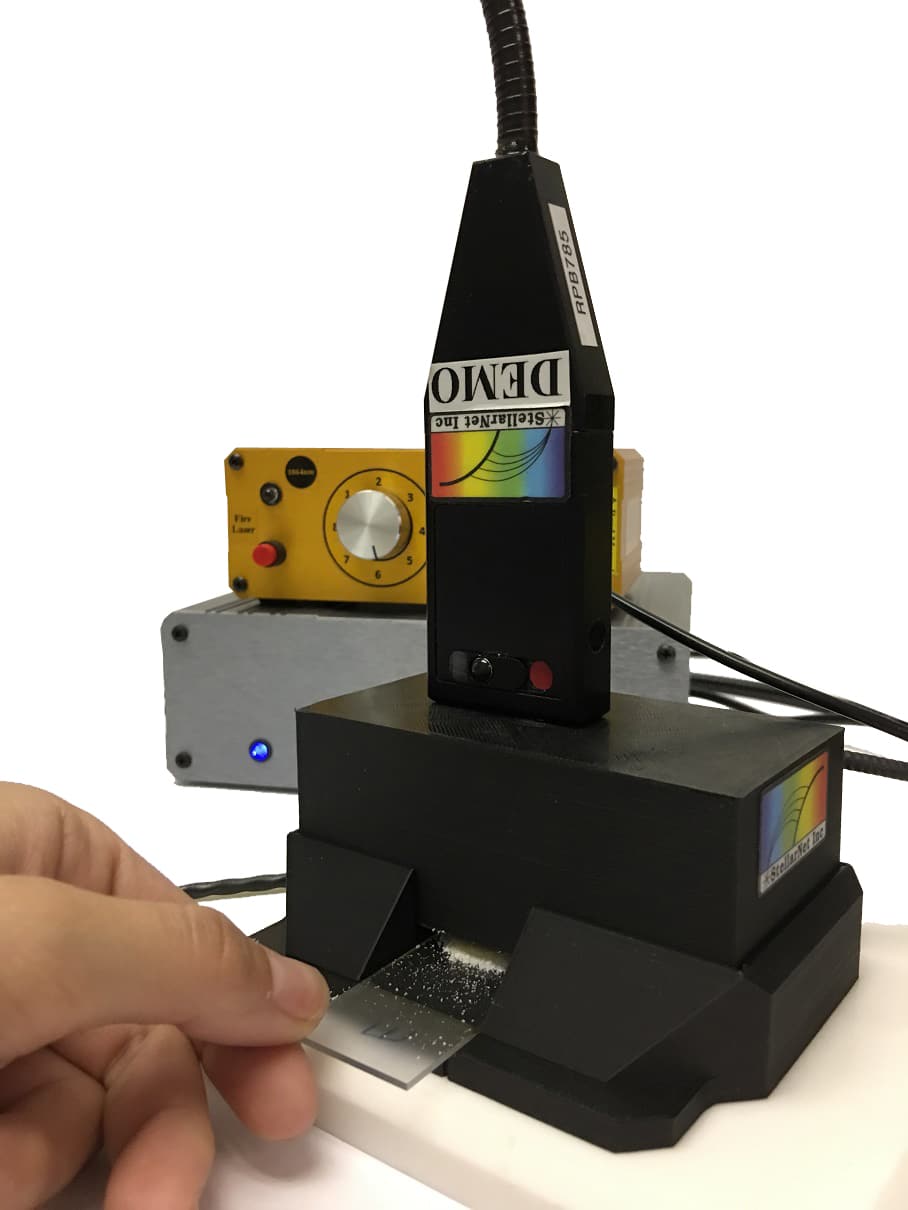

RPH5 Vertical Raman Probe Holder Block for powder and solids. Samples are placed onto a slide and inserted into the measurement chamber of the block. Includes a laser safety interlock and base. $650.00
Raman-Probe-TIP Additional tip for Raman Probe. Choose working distance 2, 5, 7.5, 10, or 12.5mm $199.00
Raman-Probe-TIP-Tele Raman probe tip lens assembly attachment for 3cm working distance. Designed to by mounted on to standard Raman probe with 5mm working distance $950.00
StellarSCOPE StellarNet configured Microscope equipped with 4,10, & 40x objectives, CMOS 1.3 Mpixel Camera, optical switch, and required coupling accessories $11,000.00
SERS-25 Package of 25 SERS substrates $250.00
TEC-X2 Upgrade your Raman spectrometer with a 2-Stage Thermoelectric detector cooler.
The 2-Stage eXtreme TEC maintains a constant -30 degrees below ambient temperature and increases signal to noise by reducing noise effects by over %80 at long exposures (<3000ms). TEC includes a sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation. Best for integration times >1 minute$2,950.00
Inter-Slits Upgrade your Raman Spectrometer with Interchangeable slits .
Includes modification to optical bench input to allow access to exchangeable slits. Includes pack of 14, 50, 100, 200um slits. 14um for best resolution and 200um for high sensitivity applications. Tight-Slit locking technology means no hardware or screwdriver required.$1,750.00
